Bluetooth 4.2 & 5.0 Low Energy BT03-1 Module (CC2640) & DIP adapter PCB

  • Bluetooth 4.2 & 5.0 Low Energy BT03-1 Module (CC2640) & DIP adapter PCB
    UPC : 698545365977
    EAN : 0698545365977

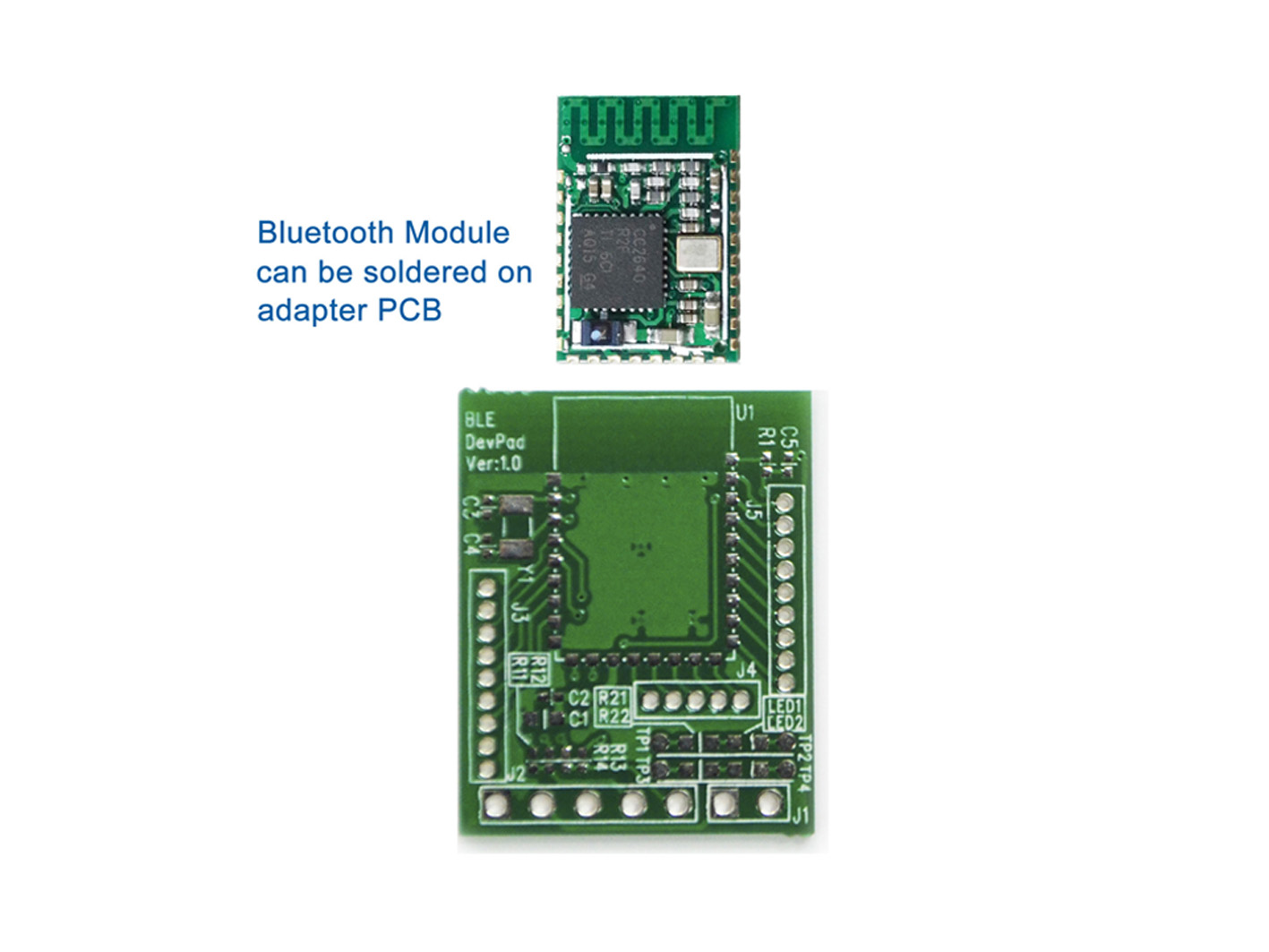

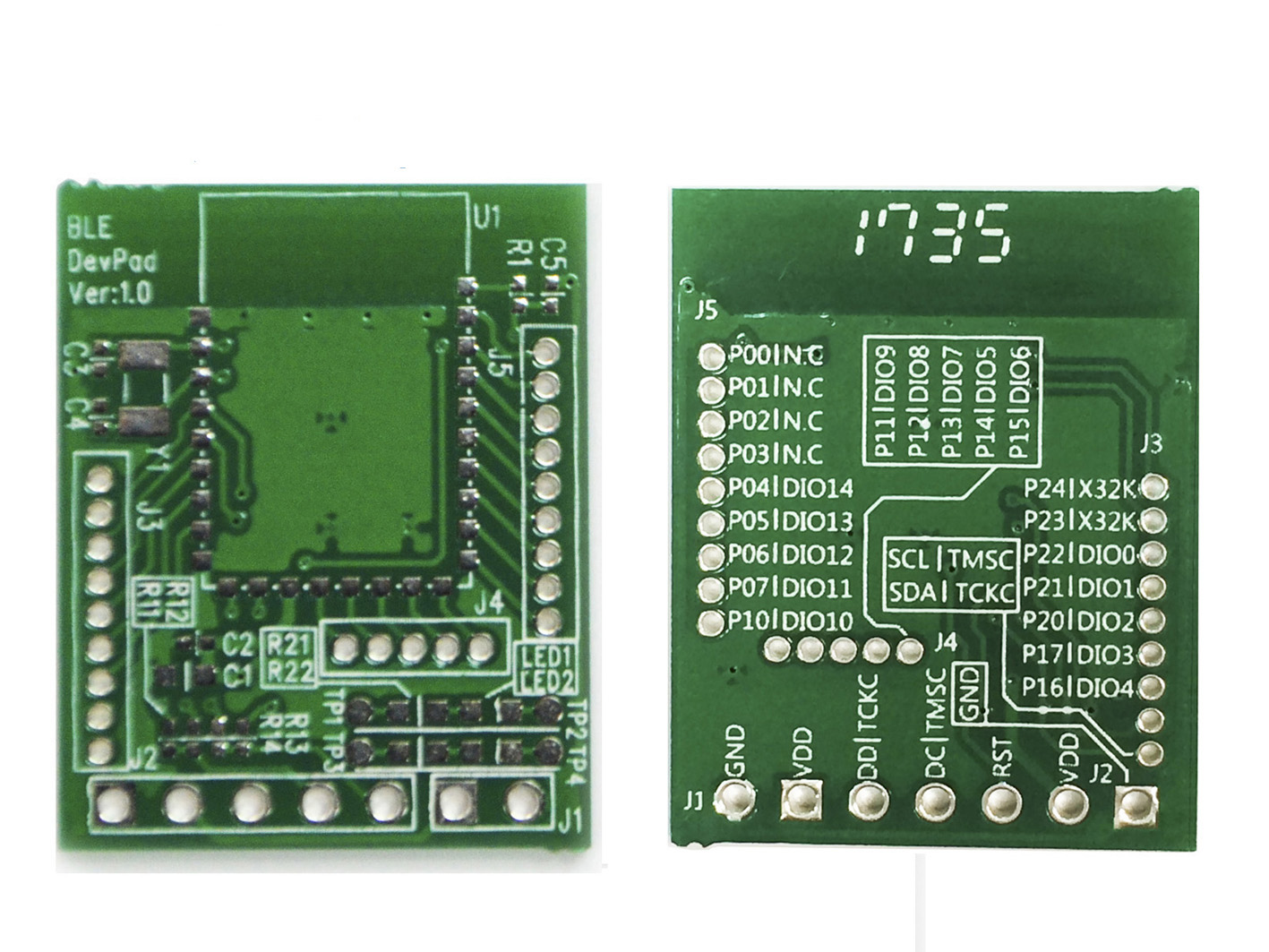

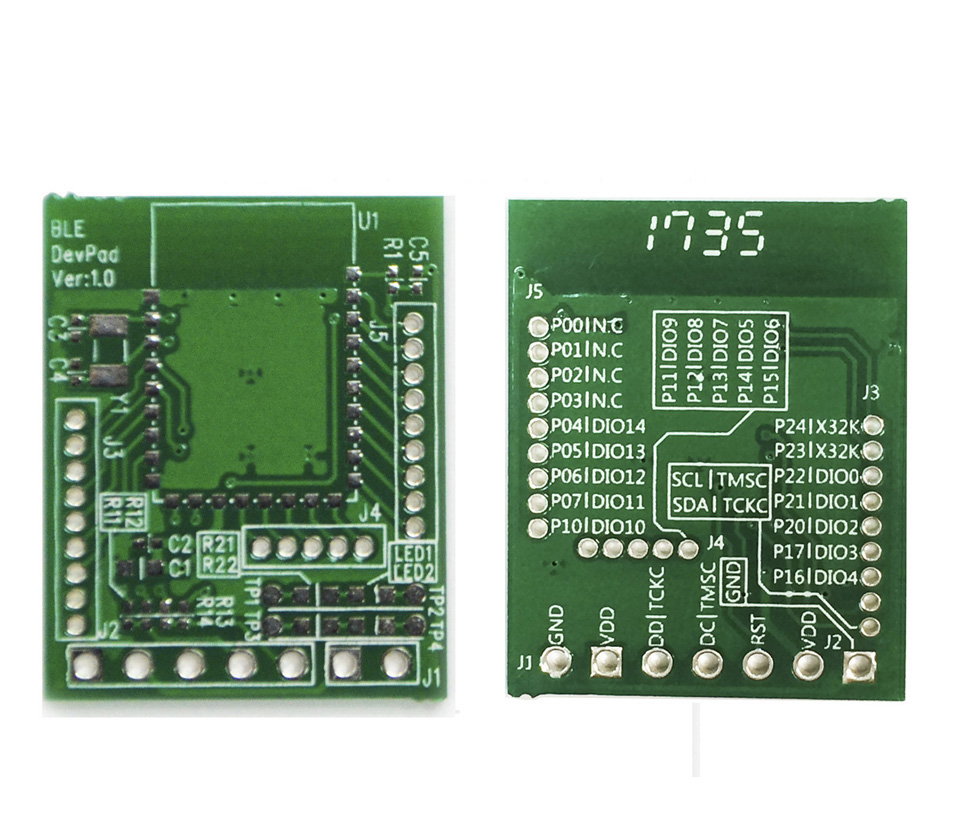

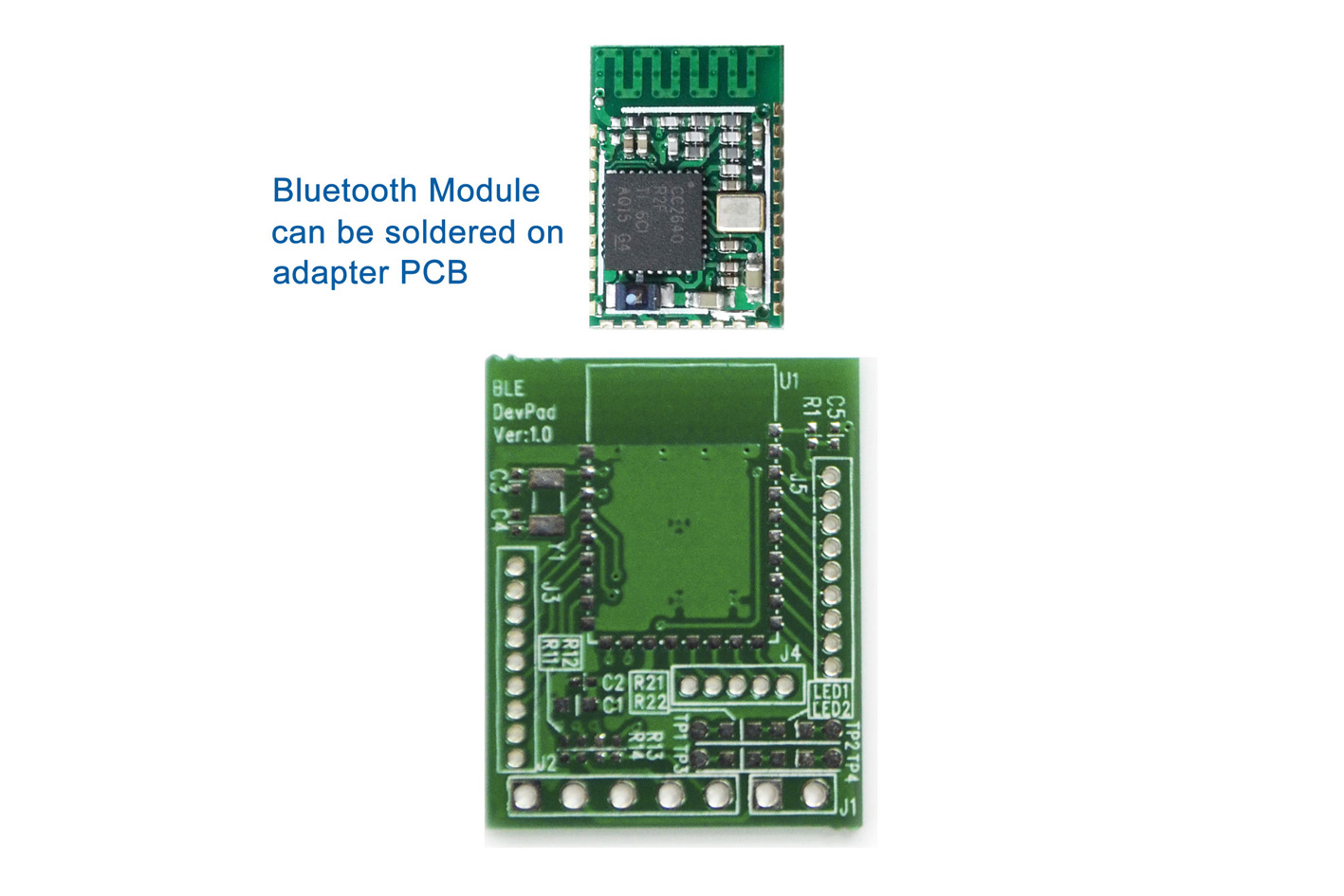

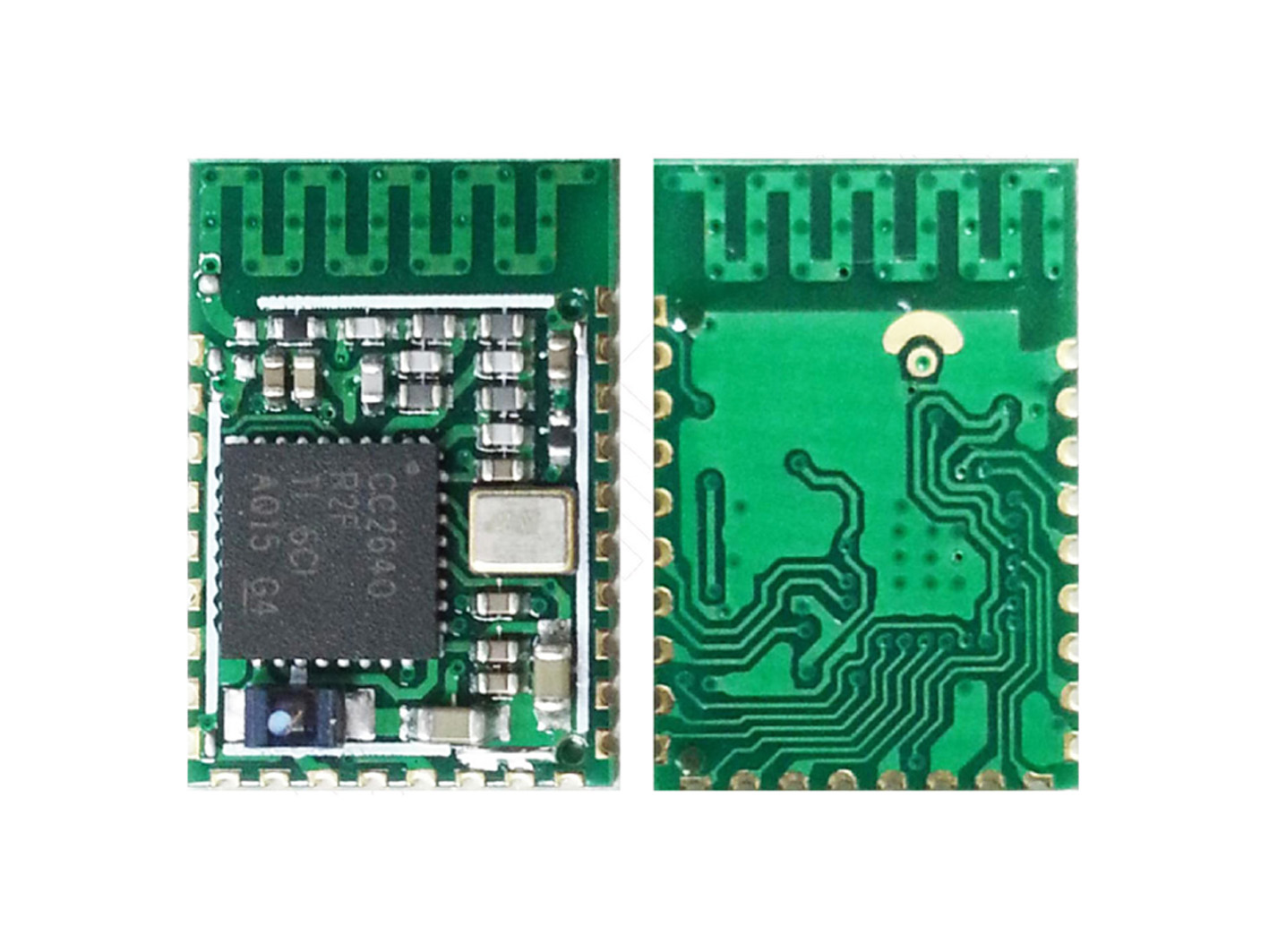

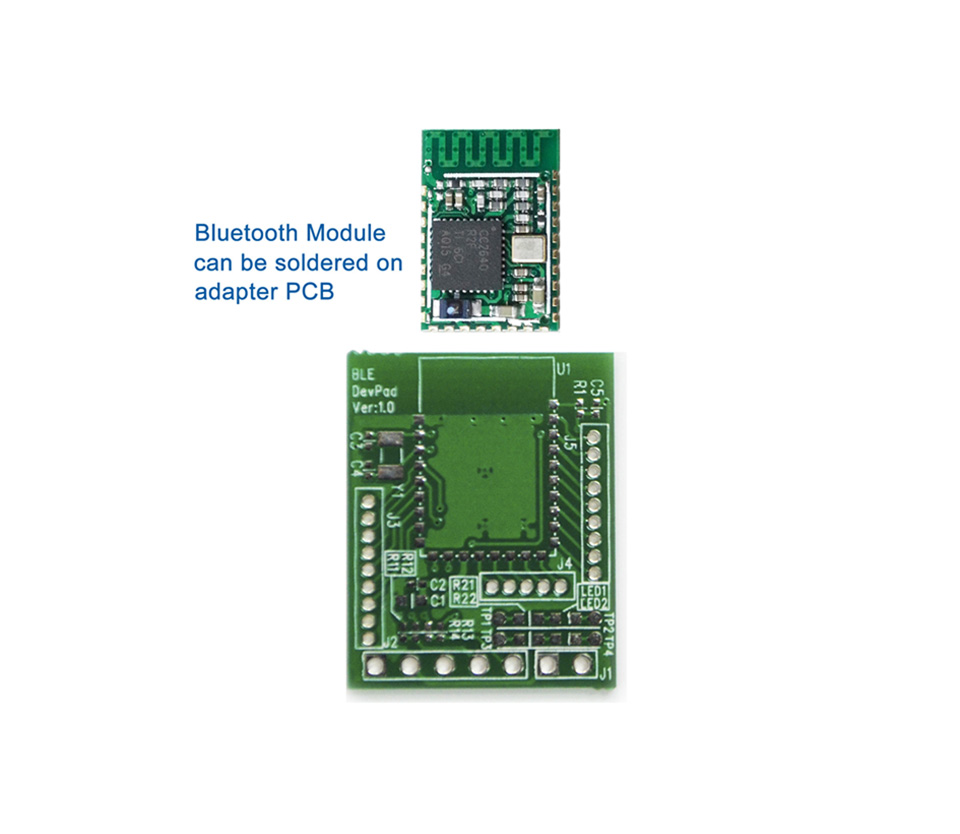

    Bluetooth low energy (LE) Module BT03-1 is a TI Bluetooth low energy controller CC2640R2F. This module is ideal for low power wireless sensing device applications including mobile phone accessories, sports, consumer electronics, HID and etc. The module is integrated with PCB antenna and crystal to reduce the external BOM Cost. With DIP adapter PCB, BT03-1 BLE 4.2 & 5.0 module can be soldered on it with all outputs/ inputs.

    Product Information
    - Bluetooth version 4.2 & 5.0 low energy (LE, single mode) compliant.
    - Powerful ARM® Cortex®-M3 microcontroller and up to 48-MHz clock speed.
    - 128KB In-System-Programmable flash and up to 28KB of system SRAM - With supply voltage range (1.8 to 3.8V) and with lowest power.

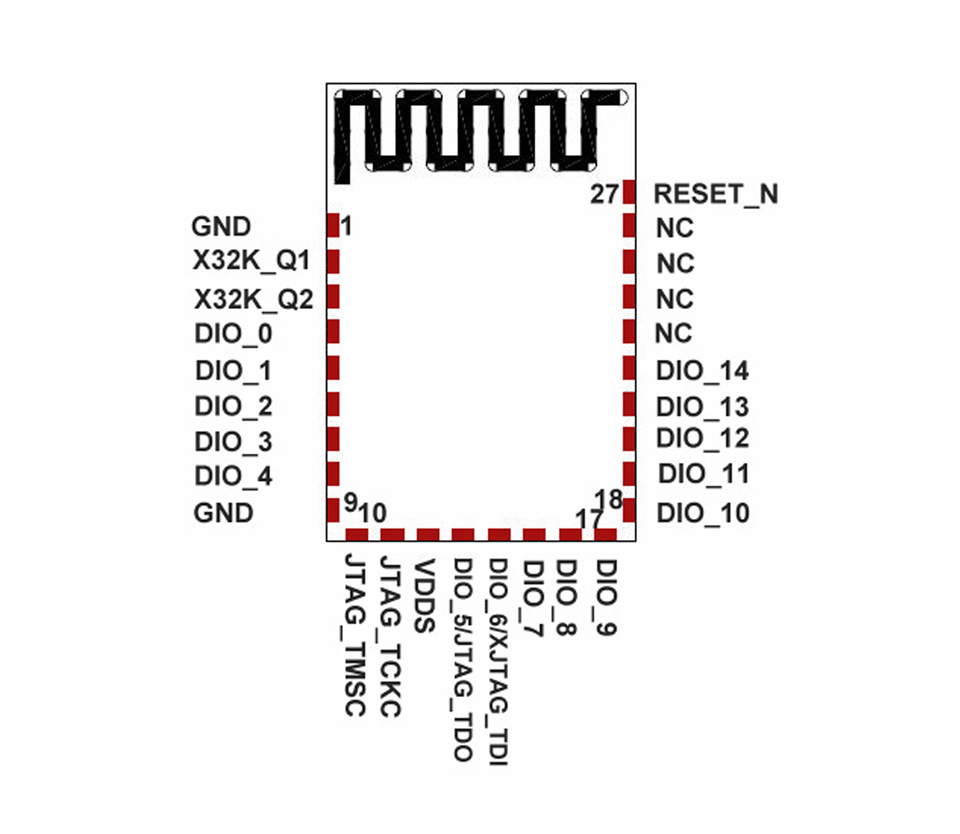

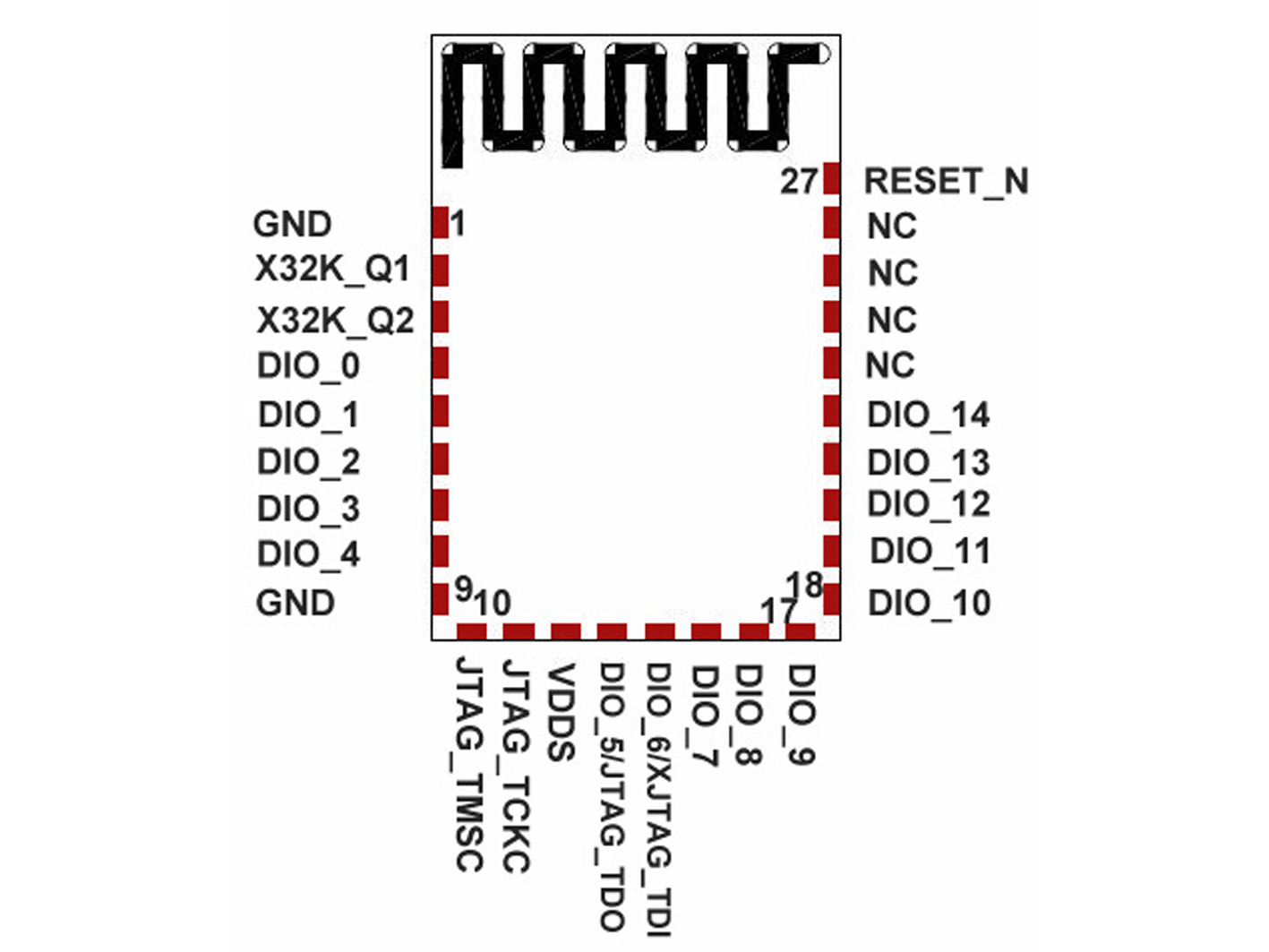

    • Up to 15 GPIOs (All Digital Peripheral Pins Can Be Routed to Any GPIO)
    • 4 General-Purpose Timer Modules
    • 12-Bit ADC, 200-ksamples/s, 8-Channel Analog MUX
    • Continuous Time / Ultra-Low-Power Analog Comparator
    • Programmable Current Source
    • UART / SSI / I2C / I2C / Integrated Temperature Sensor
    • Support for Capacitive-Sensing Buttons
    • Real-Time Clock (RTC)
    • AES-128 Security Module / True Random Number Generator (TRNG)
    - Excellent Receiver Sensitivity.
    - Programmable Output Power.
    - On board PCB Antenna and Crystal.
    - Module dimension: 0.58 inch x 0.39 inch/ 14.8 x 10mm, FR4 PCB
