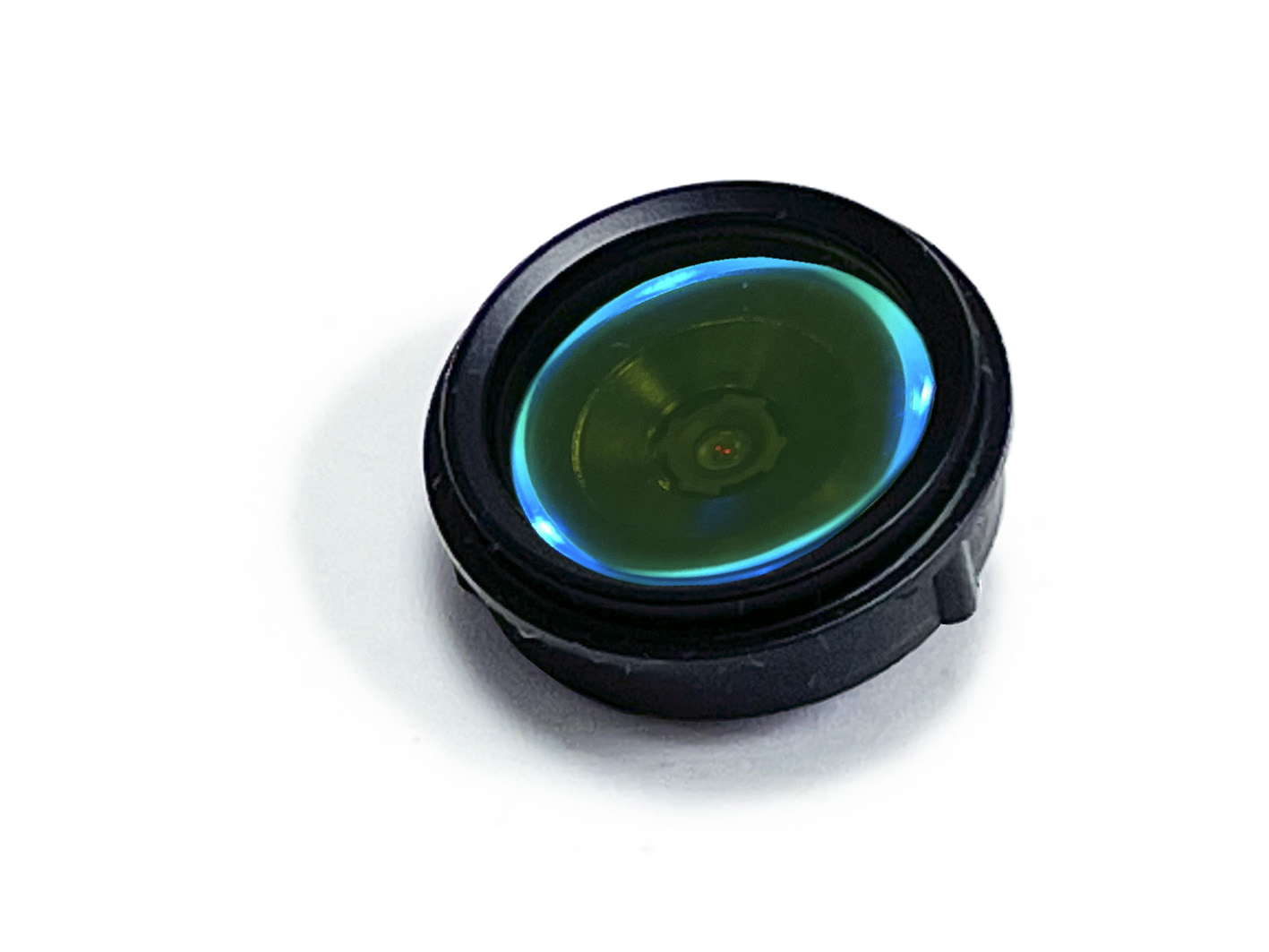

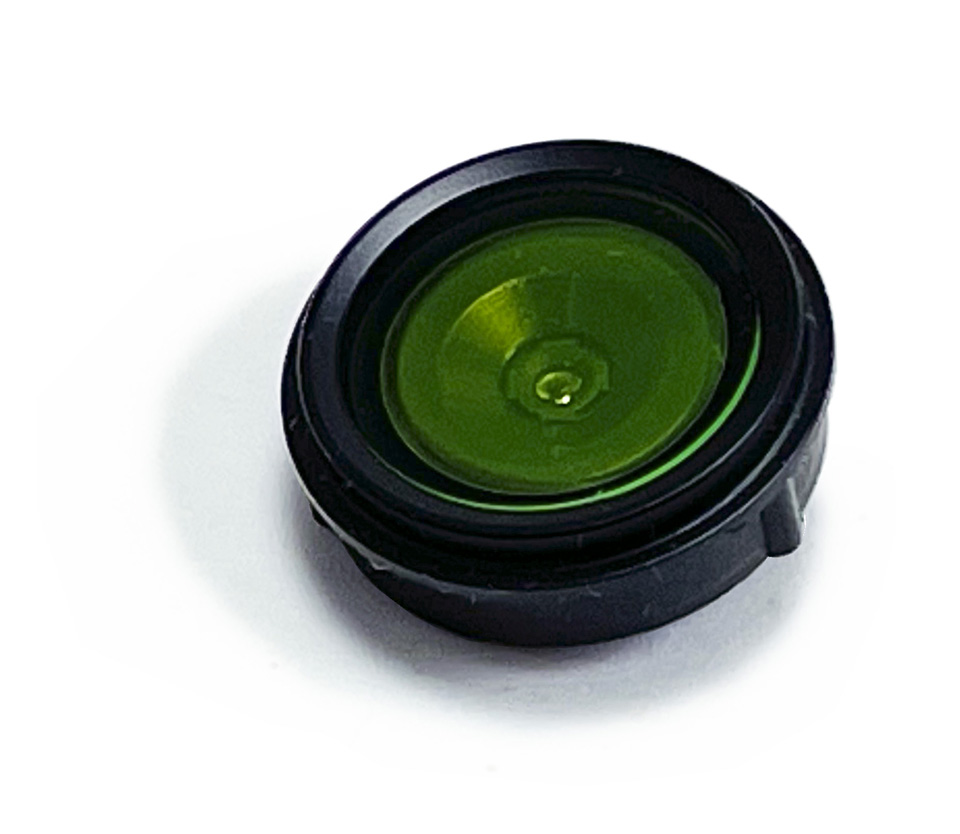

FPM-1633K1 Latest Miniature Optical Fingerprint Module
UPC : 698545365618
EAN :
The FPM-1633K1 is the latest miniature touch sensor with extensive enhancements on power consumption and user flexibility. It allows 360-degree rotation, which enables maximum performance without compromising on design aesthetics.

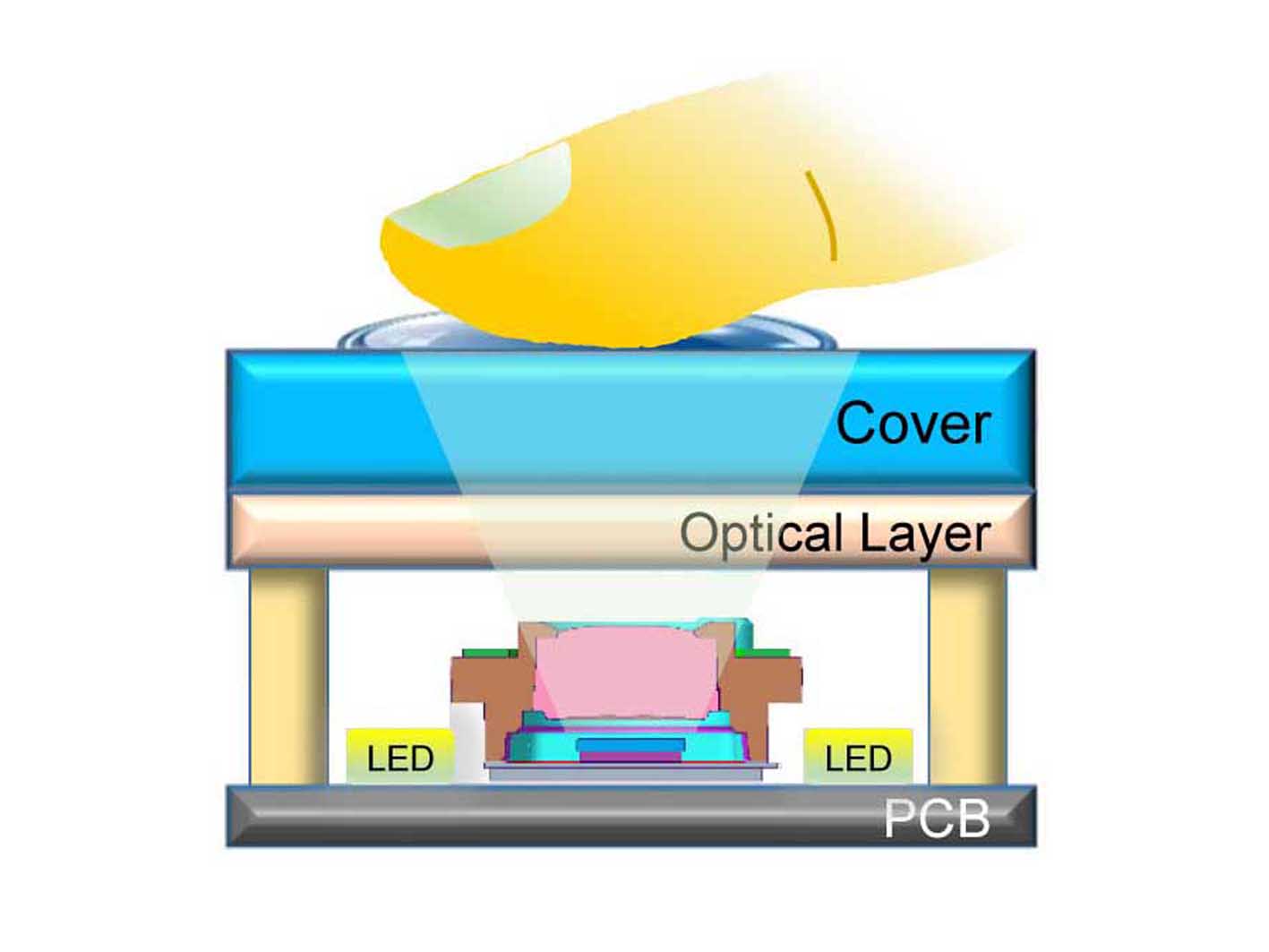

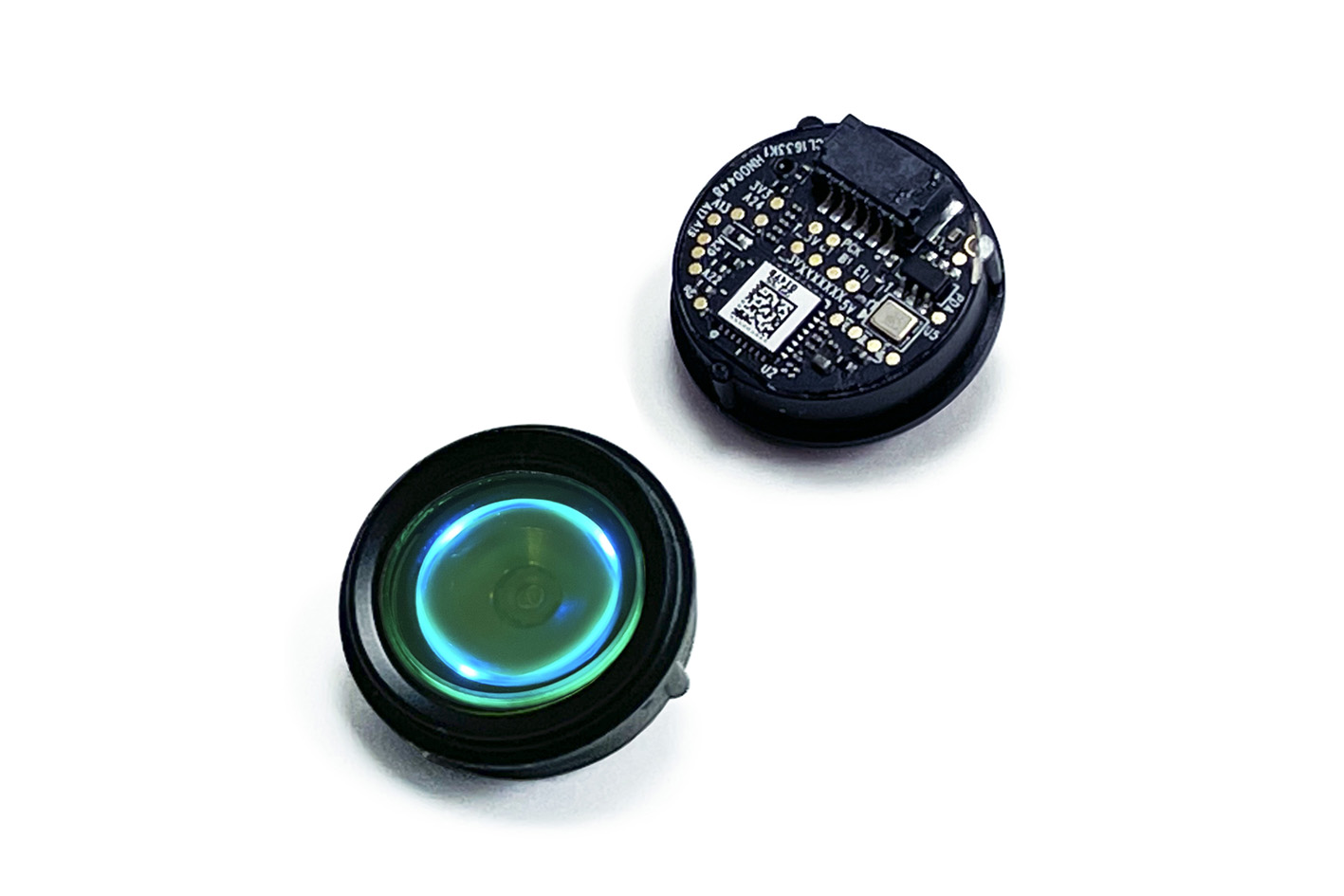

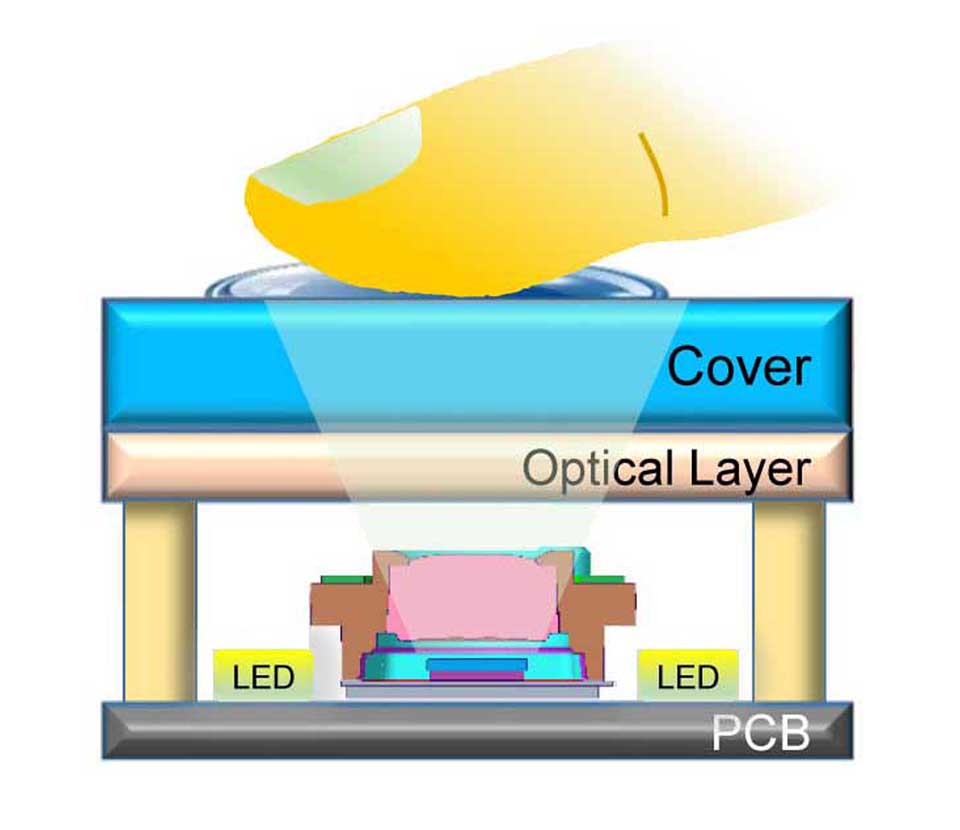

The product integrate optical sensor, light source and touch under cover glass, allowing it to instantaneously capture high resolution images of the fingerprint while rapidly outputting the captured images through the high speed SPI interface to the MCU for recognition algorithm. This range of fingerprint sensor with their advanced optical technology, press instructions, durable structure, high ESD immunity and other features combine to provide designers with a reliable and highly functional sensor for products requiring fingerprint recognition functions.
Product Information

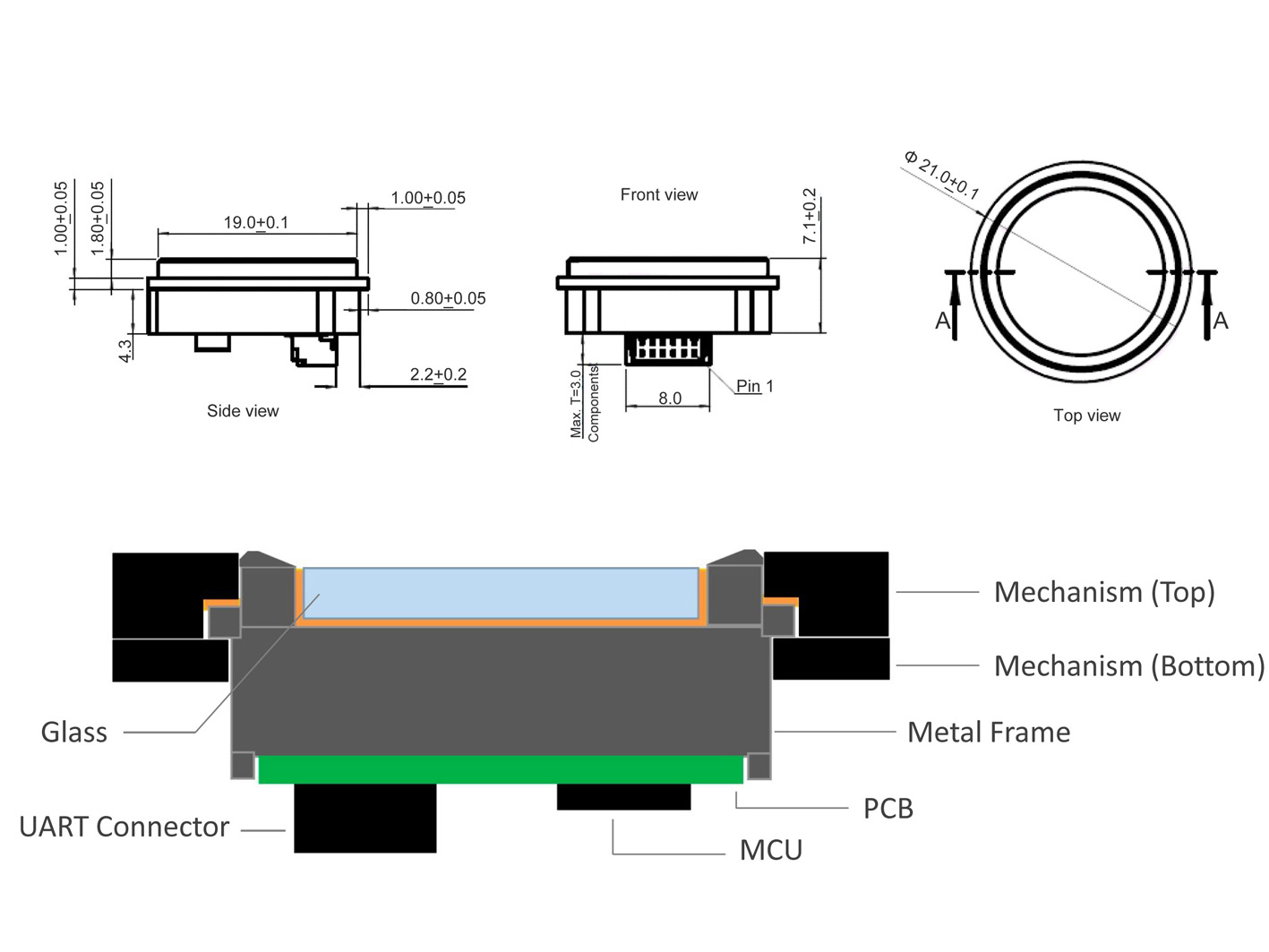

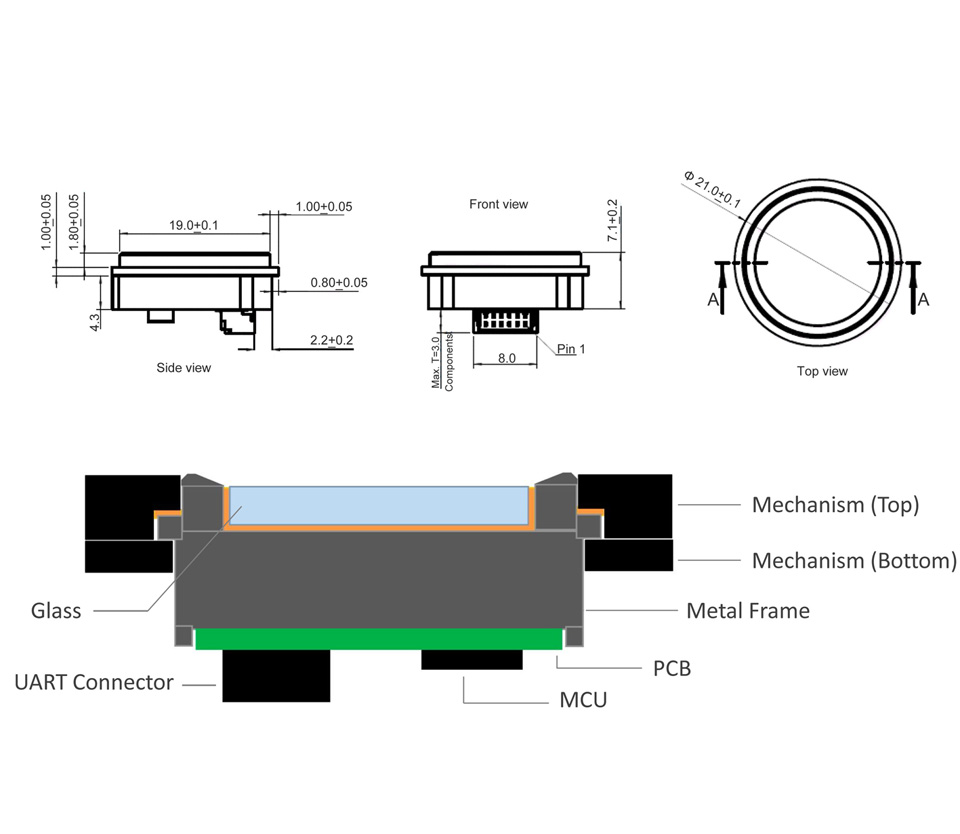

• Module Dimension: Ø21.0mm(OD), Ø19.0mm(ID) H=7.1mm (include 1.8mm cover glass & 0.8mm PCB)
• Fingerprint Supply Voltage: 3.3V
• Active Mode Supply Current: 67.3mA
• Effective Sensing Area: 8 mm x 8 mm
• Resolution: 508 dpi
• Enroll Times: 8 times
• FRR/ FAR: @FAR=1/ 50K
• Storage Capacity: 30 pieces
• Interface: UART
• Baud Rate (default): 9600 bps
• Weight: 6g + 0.05g
