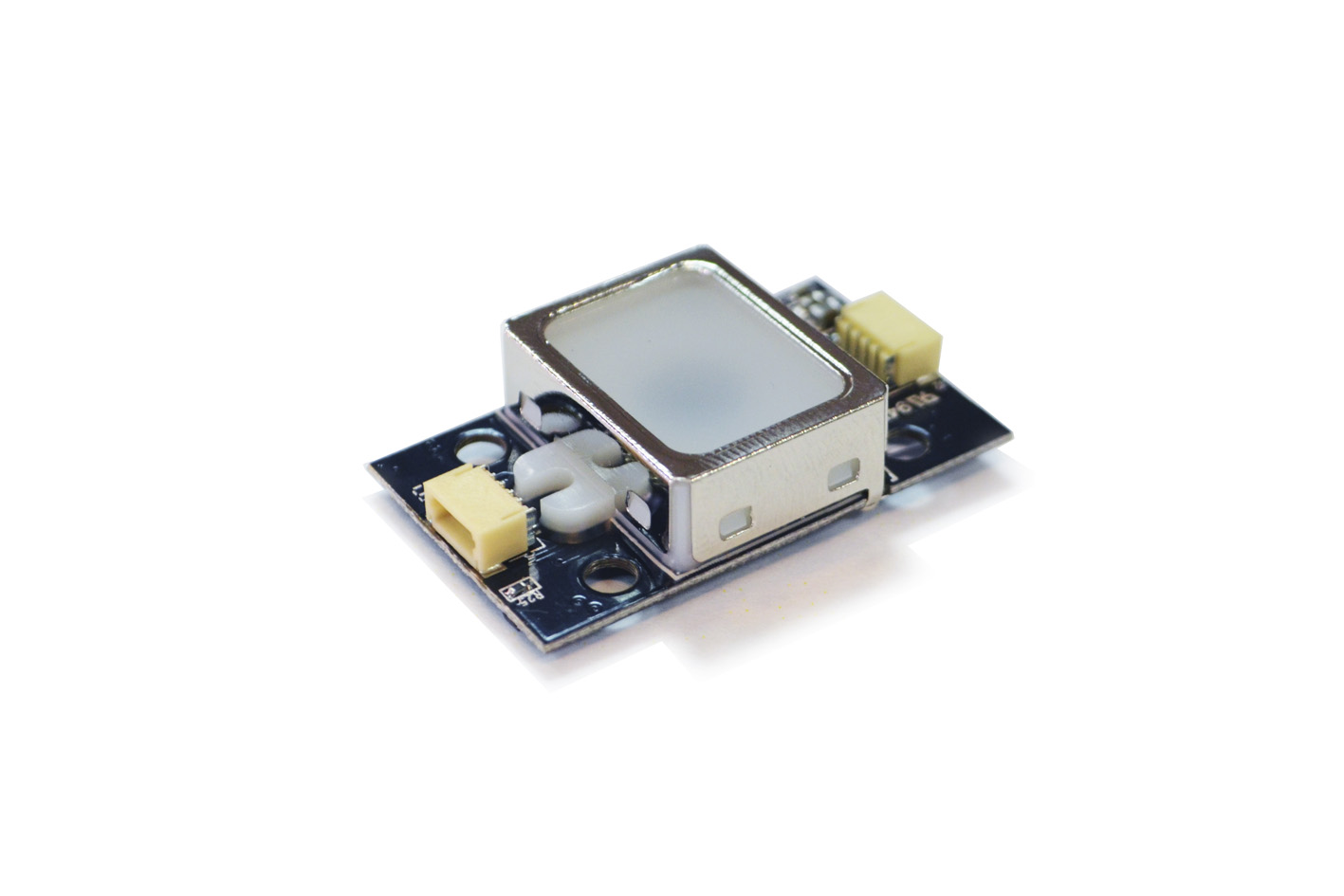

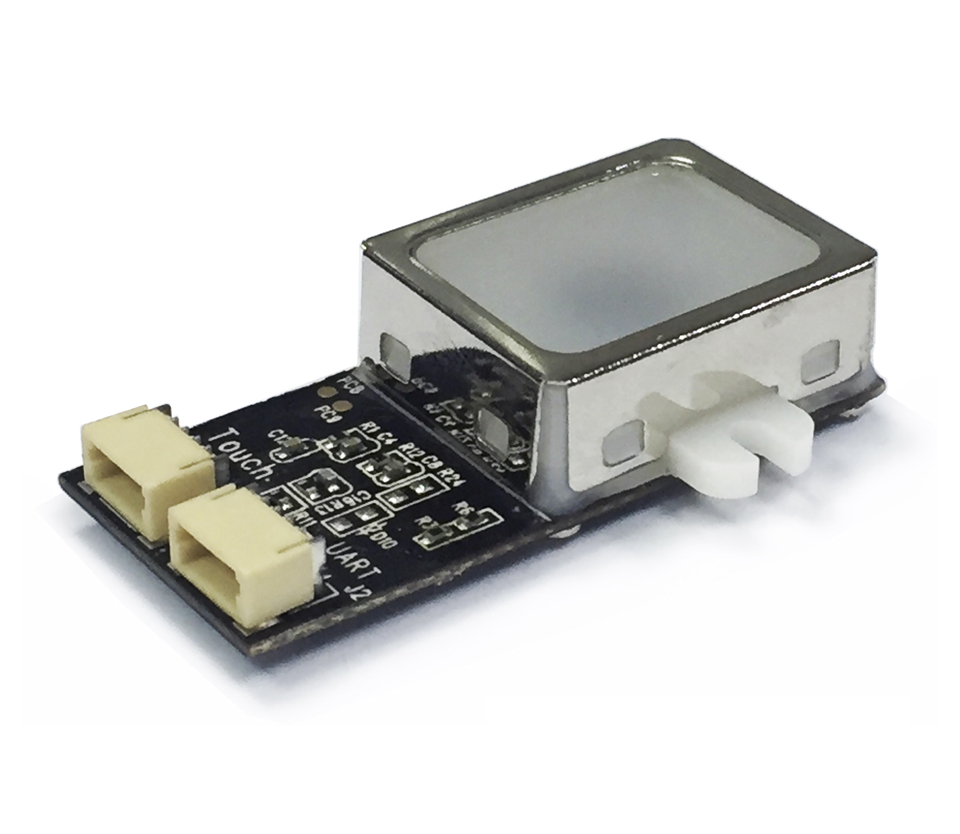

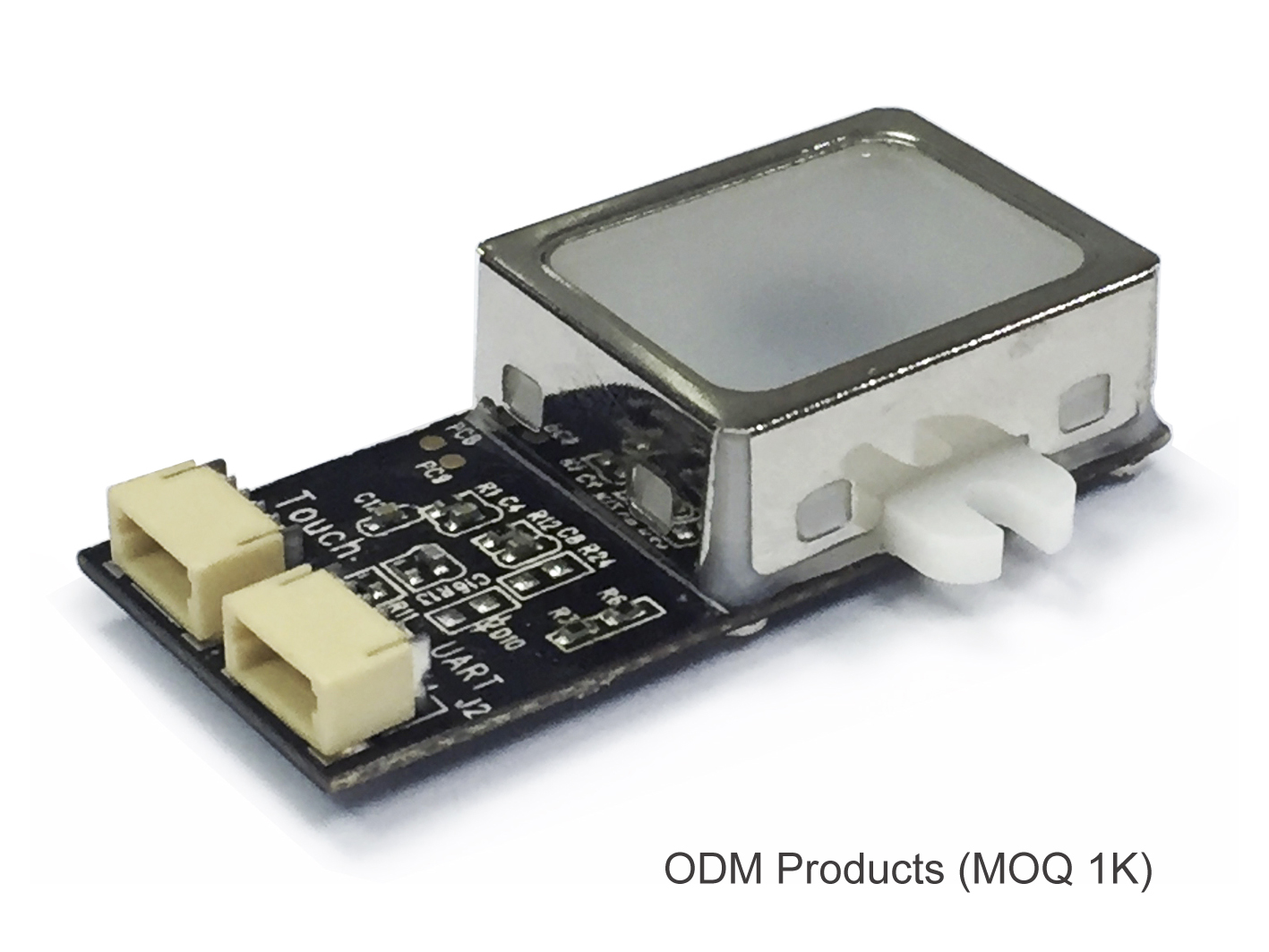

FPM-5210F52, CMOS Optical Fingerprint Module
UPC : 698545366479
EAN :

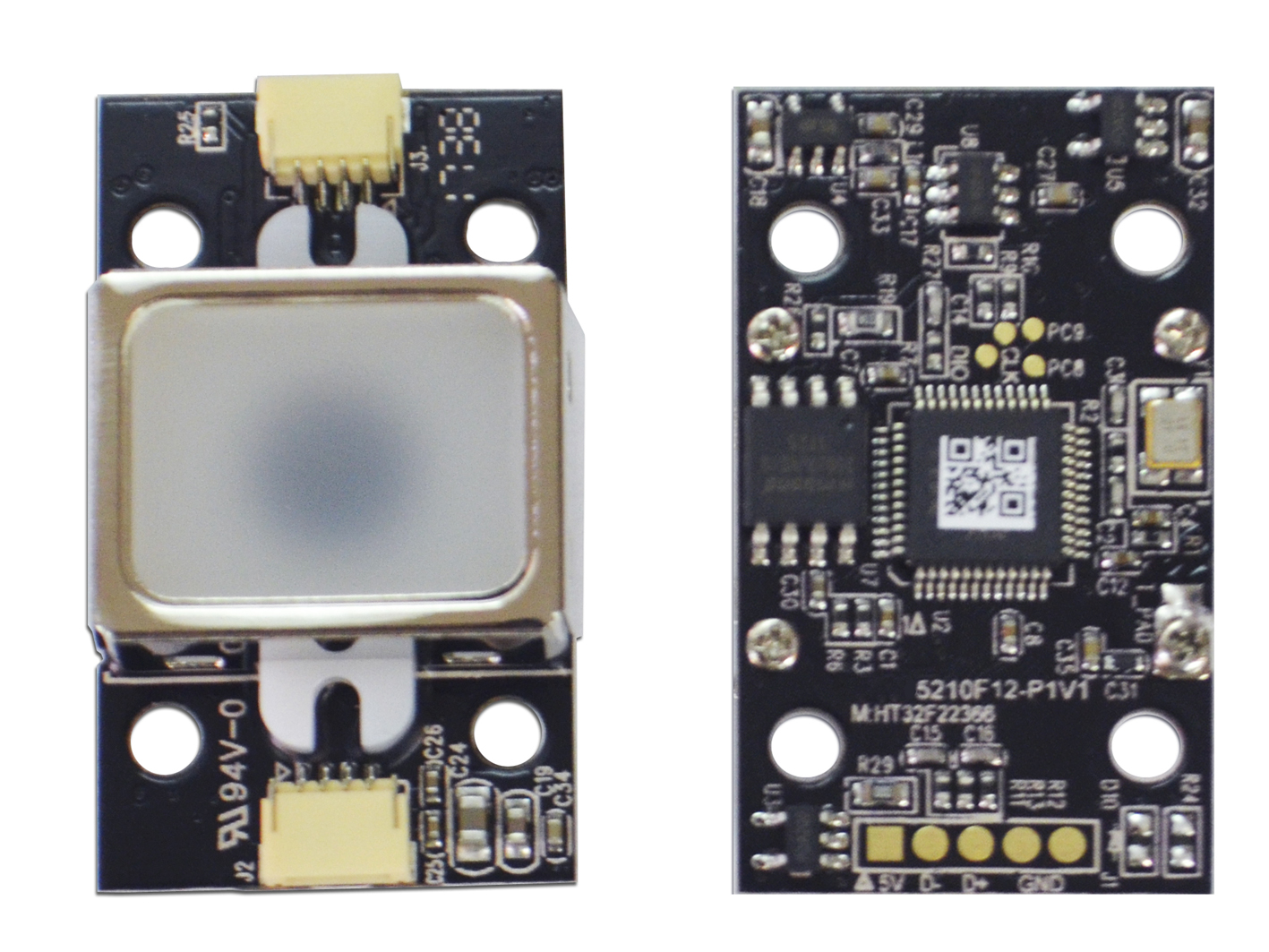

Unlock convenience and security with the FPM-5210F52. This high-performance fingerprint module integrates seamlessly into products with UART interfaces, offering stable imaging and reliable performance for mass market applications. Powered by the advanced HT32F22366 device, its fingerprint algorithm operates efficiently on a high-performance 32-bit microcontroller, based on an ARM® Cortex™-M3 processor core. This innovative technology guarantees swift authentication while minimizing power consumption. Experience innovation and reliability with the FPM-5210F52.
Product Information
• CPU: ARM Cortex M3 Core
• Sensor: Optical CMOS sensor
• Window: 16.9 mm x 12.9 mm
• Effective Area of the Sensor: 14 mm x 12.5 mm
• Resolution/ Image Size: 450 dpi / 258 x 202 Pixels
• Number of Fingerprints: 3000 fingerprints
• Algorithm Matching Mode: 1:1, 1:N
• Size of Template: 496 bytes (template) + 2 Bytes (checksum)
• Interface: UART (default baud rate=9600bps after power on)
• FAR/ FRR: False Acceptance Rate (FAR)< 0.001%; False Rejection Rate (FRR) < 0.1%
• Enrollment Time/ Identification Time: <3 sec. (3 fingerprints); <1.5 sec.
• Operating Voltage DC 3.6V ~ 6V
• Operating Current < 130 mA

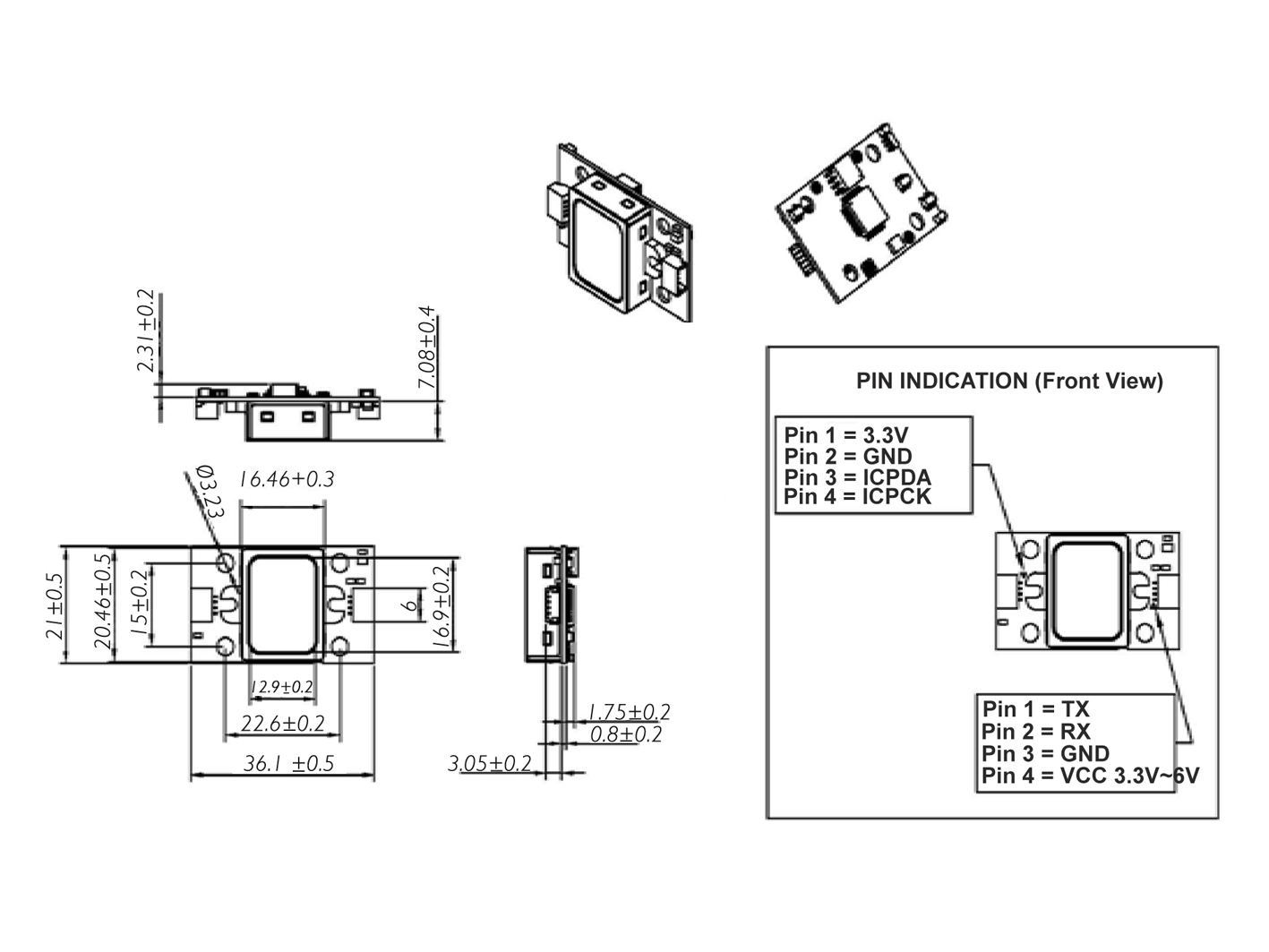

• Dimension 36.1+0.5 (L) x 21.0 (W)+0.5 x 9.39+0.2 (H) mm
