KBC-3000 Keyboard Controller with USB & PS/2 Interface
SKU:
UPC: 698545365656

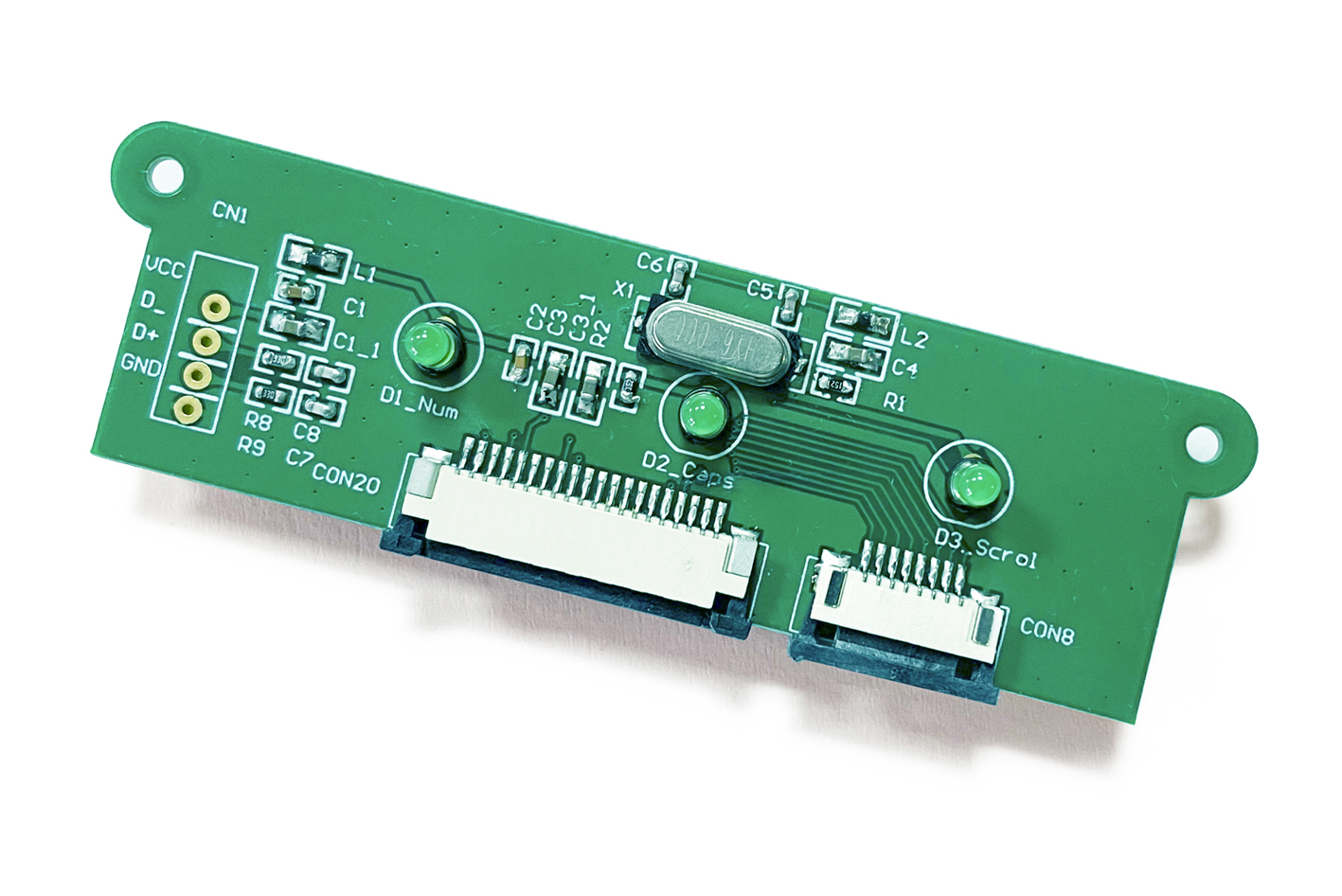

The KBC-3000 is a compact 8-bit microprocessor-based keyboard controller designed for USB and PS/2 keyboard applications. Equipped with an 8-bit RISC CPU core, 192-Byte SRAM, and 8K x 14 internal program Mask ROM, it ensures reliable and efficient performance. Featuring built-in LED indicators, the KBC-3000 provides clear visual feedback during operation. It also includes a low-speed USB interface and power management support with Suspend and Normal modes, optimizing energy efficiency.
Designed for seamless integration with the KBM-3000 keyboard module, the KBC-3000 delivers stable operation, flexible connectivity, and enhanced power management, making it an ideal solution for industrial and custom keyboard applications.
Product Information
• CPU: 8-bit RICS CPU Core
• USB Specification: Compliant with USB specification 1.1
• Power: Provide 3.3V output (VCP), no external regulator required
Auto detect wake up events in suspend mode
Built-in power management Suspend mode/ Normal mode
Built-in LVAR (Low Voltage Auto Reset) circuit
• Key Matrix: 20 Key matrix drive lines; 8 Key matrix sense lines
• Interface: Auto-configuration to operate as USB or PS/2
• LED Indicator 3 LEDs, NumLock, CapsLock and Scroll Lock
• Connectors: 4-PIN Wafer, FPC 20-pin up connector, FPC 8-pin down connector
• Instruction Rate: 3Mhz instruction rate with 6 Mhz crystal oscillation
• Compatibility: Fully compatible with Windows 98SE, ME, XP, Vista, Windows 7, or later

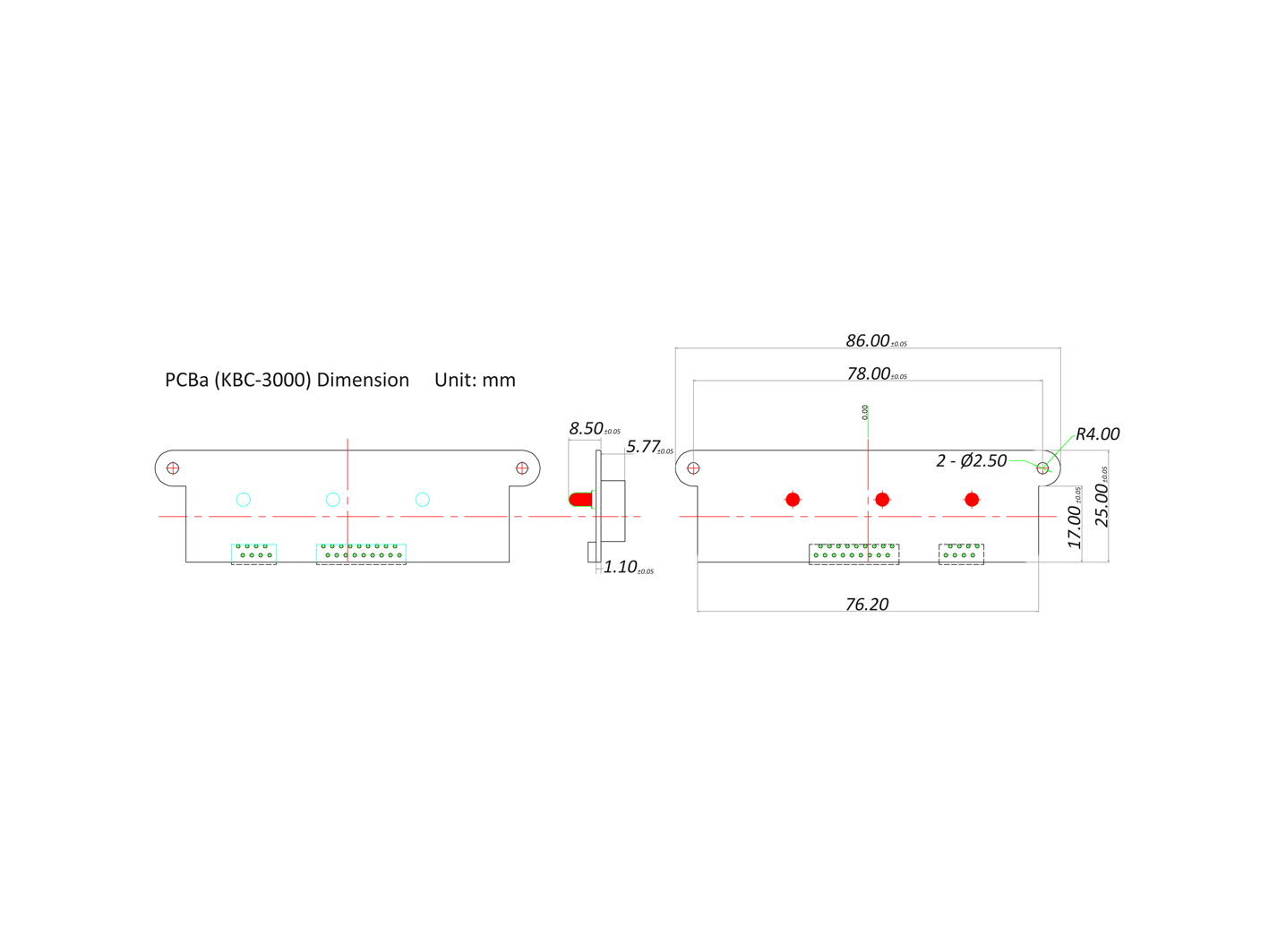

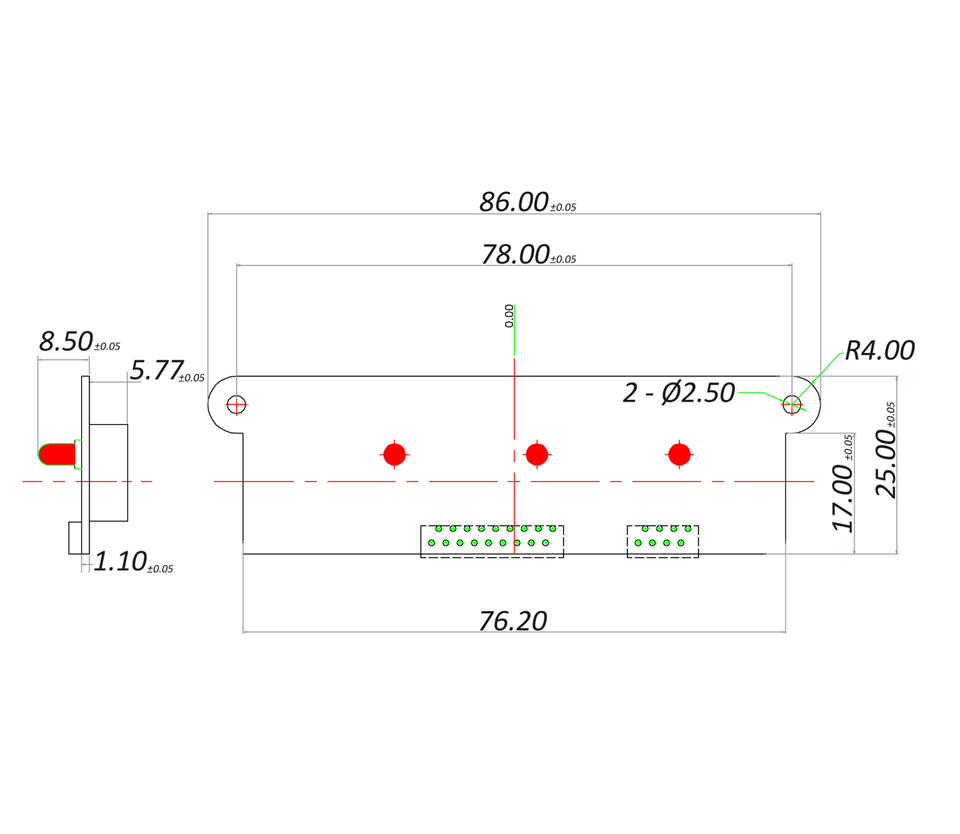

• Dimension: 86 (L) x 25 (W) mm
