KBM-3000, 85% Keyboard Module for Kiosk or KVM consoles
SKU:
UPC: 698545365649

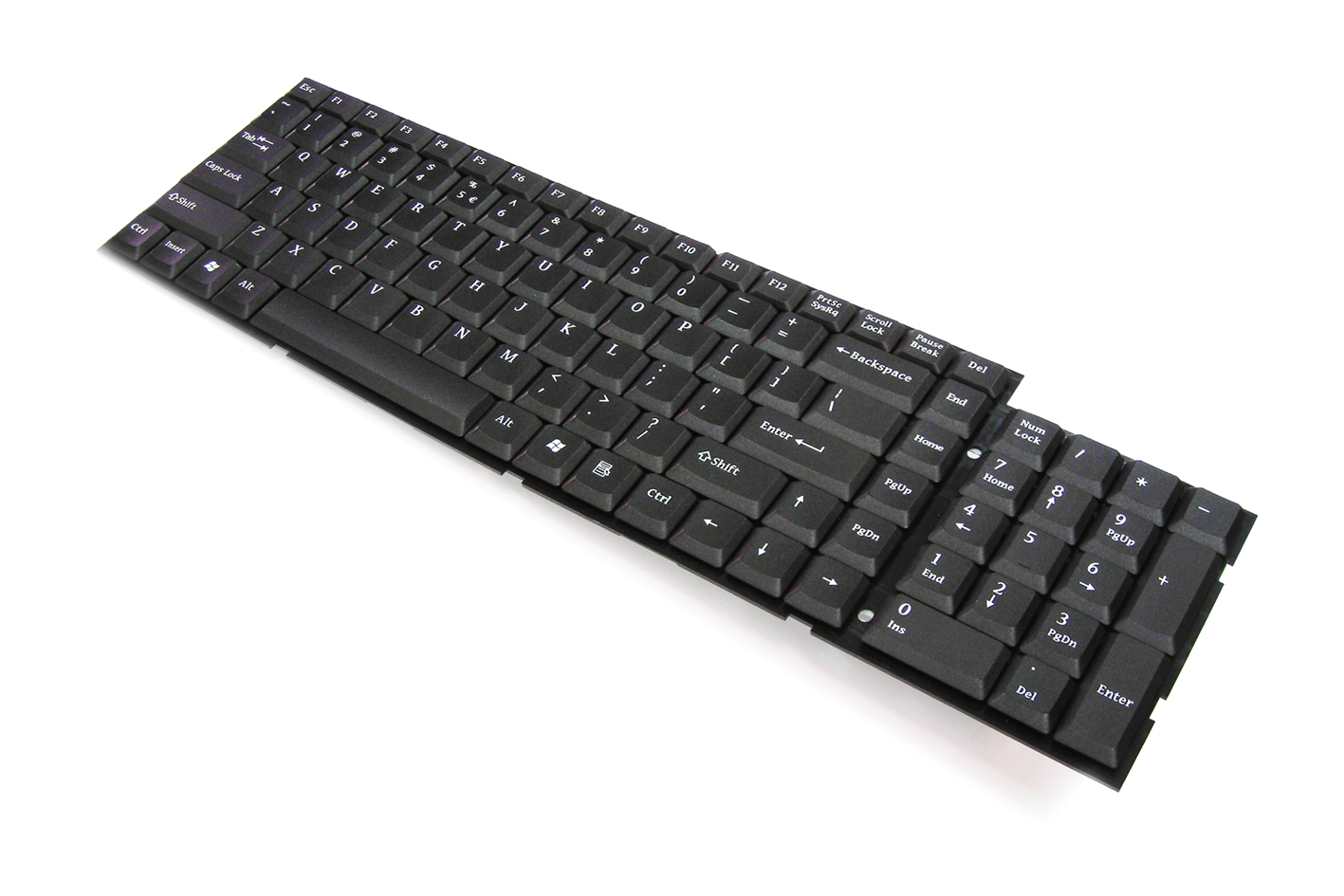

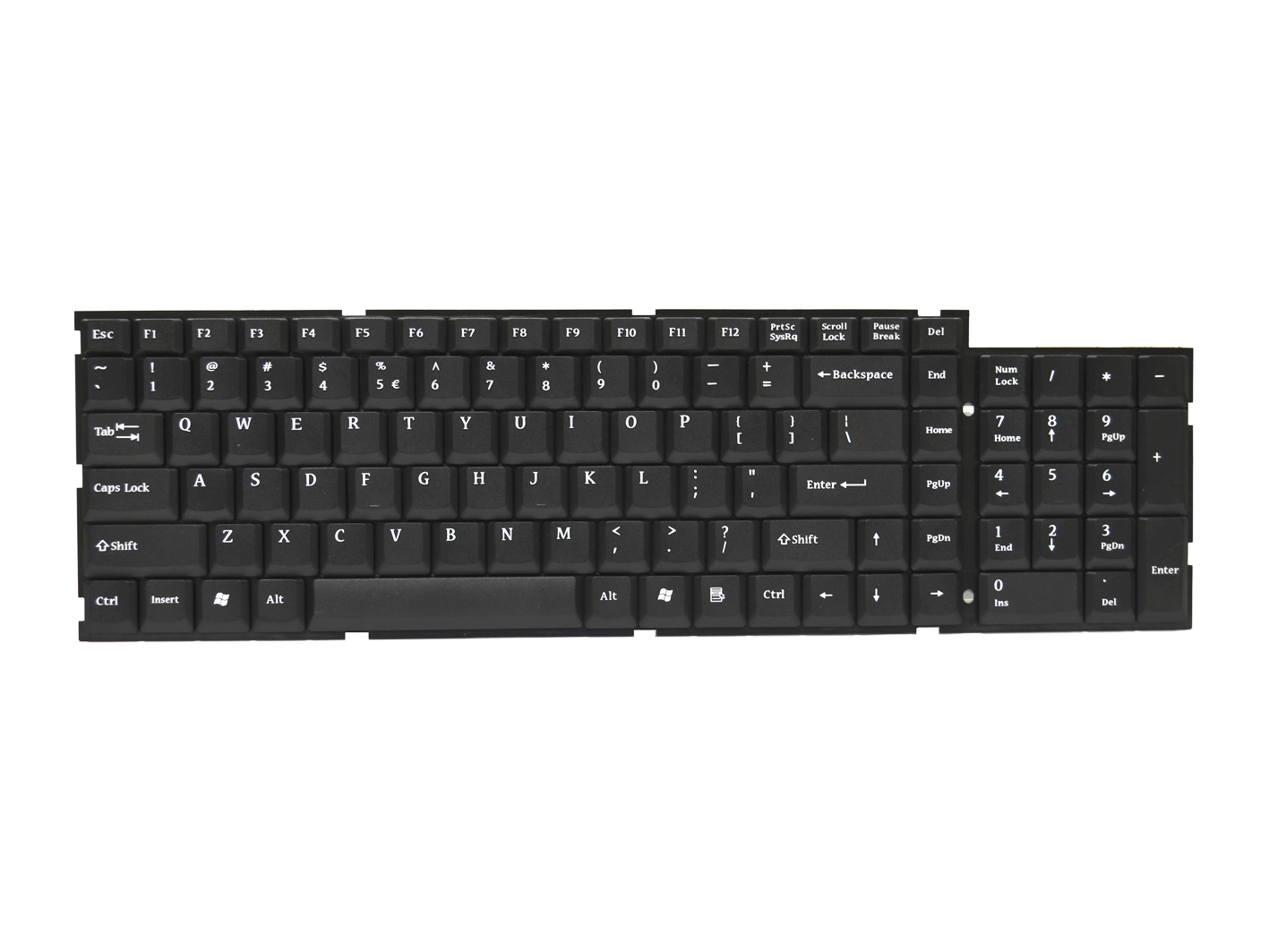

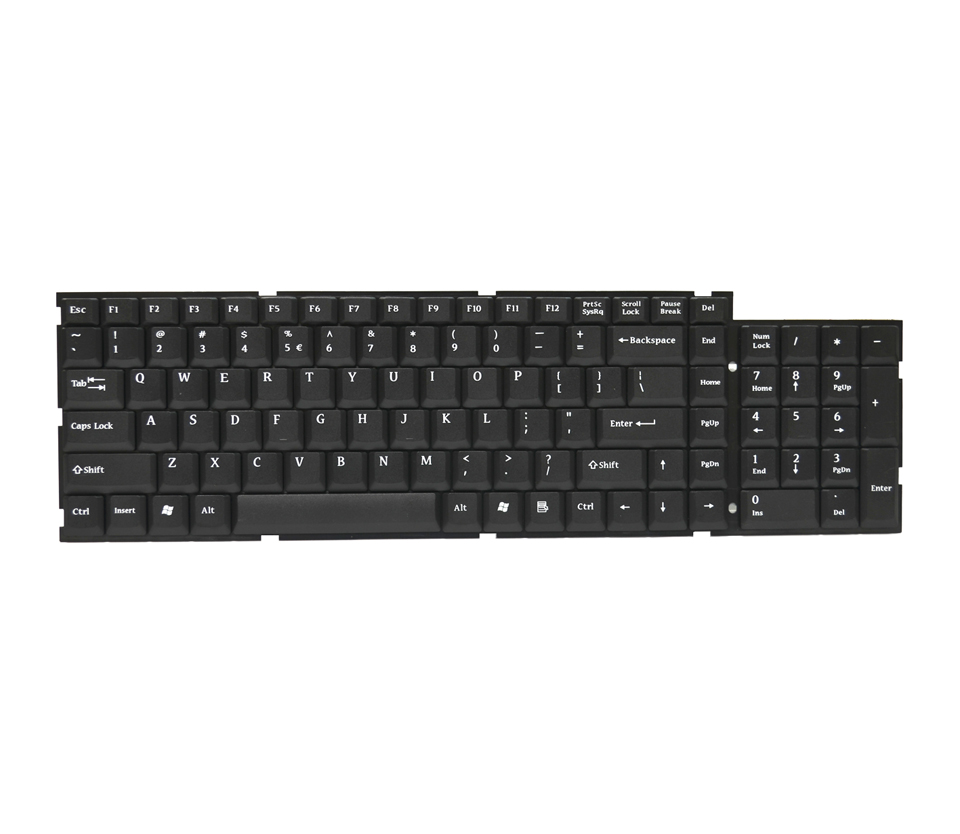

KBM-3000 Compact Size Keyboard Module
KBM-3000 is a 85% two-zone keyboard module that is specially designed for KVM or Kiosk Consoles. Its compact size and modularized mechanical design provide flexible product configuration and easy maintenance. The scissor-type key switch makes the touch and feel of the keycaps exceptional. We also optionally provide keyboard controllers or customized codes and touchpad modules as demanded.
Product Information
• 104/ 105 keys (ANSI/ISO)
• Scissor-type key switch mechanism makes good touch feeling
• Key Force: 60 +/- 8 gm
• Traveling Distance: 2.8 +/- 0.2 mm
• Input Power: 5 VDC, 100mA
• Key Pitch: 0.85 mm/ 19.05 (key centre-to-centre)

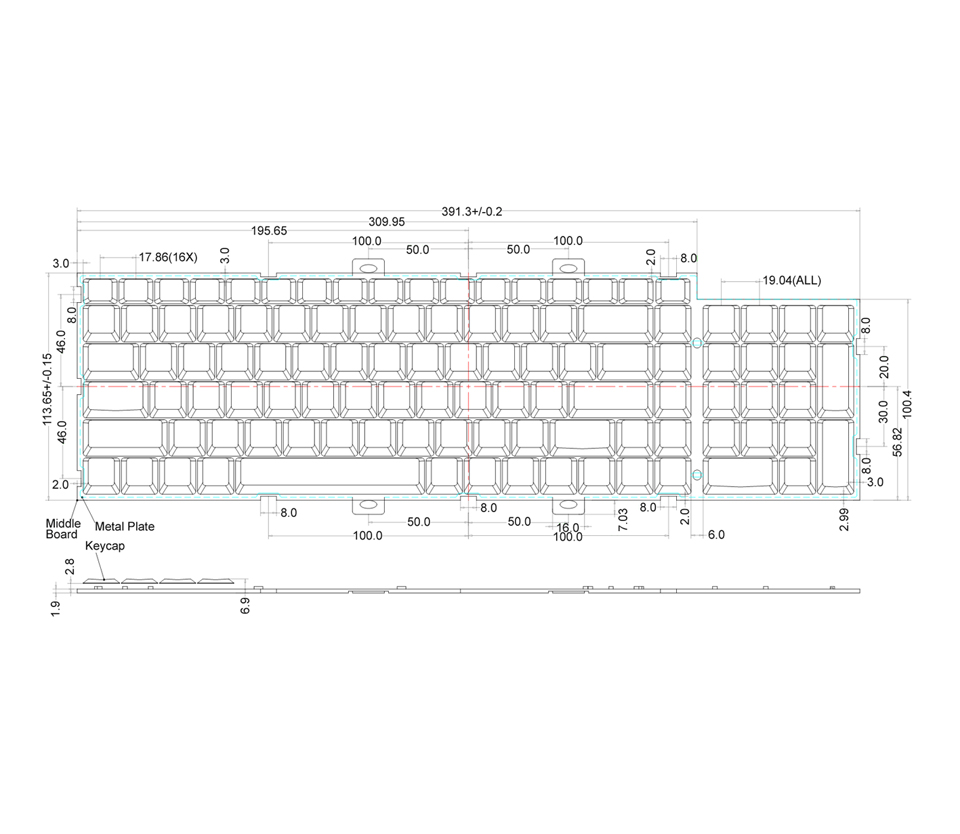

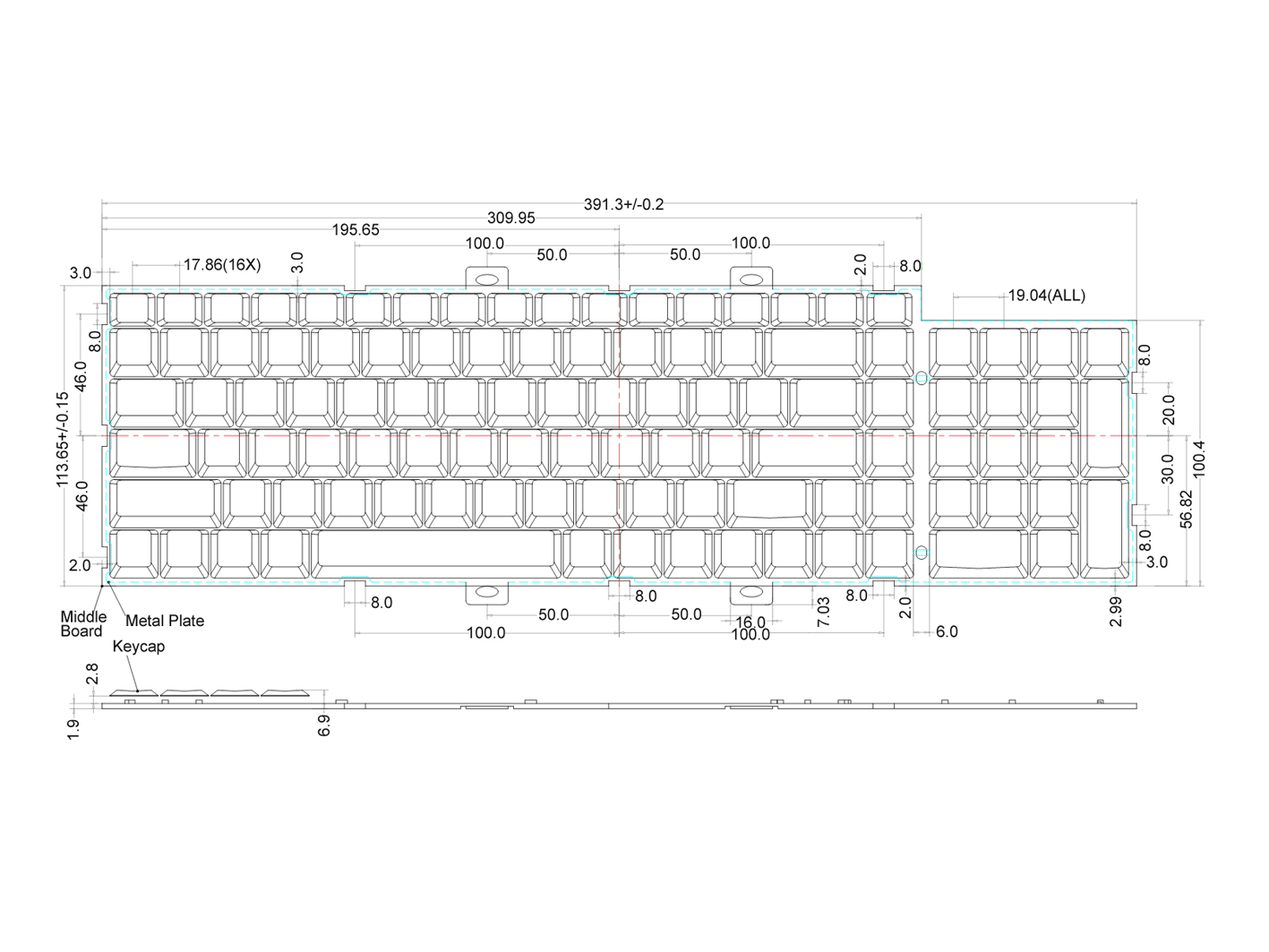

• Layout Area: 385.29 (L) x 107.66 (W) mm
• Module Dimension: 391.30 (L) X 113.64 (W) x 6.9 (H) mm
• Weight: 300 +/- 5g (with metal plate)
• Option: USB keyboard controller (PS/2 also available), TouchPad Module
