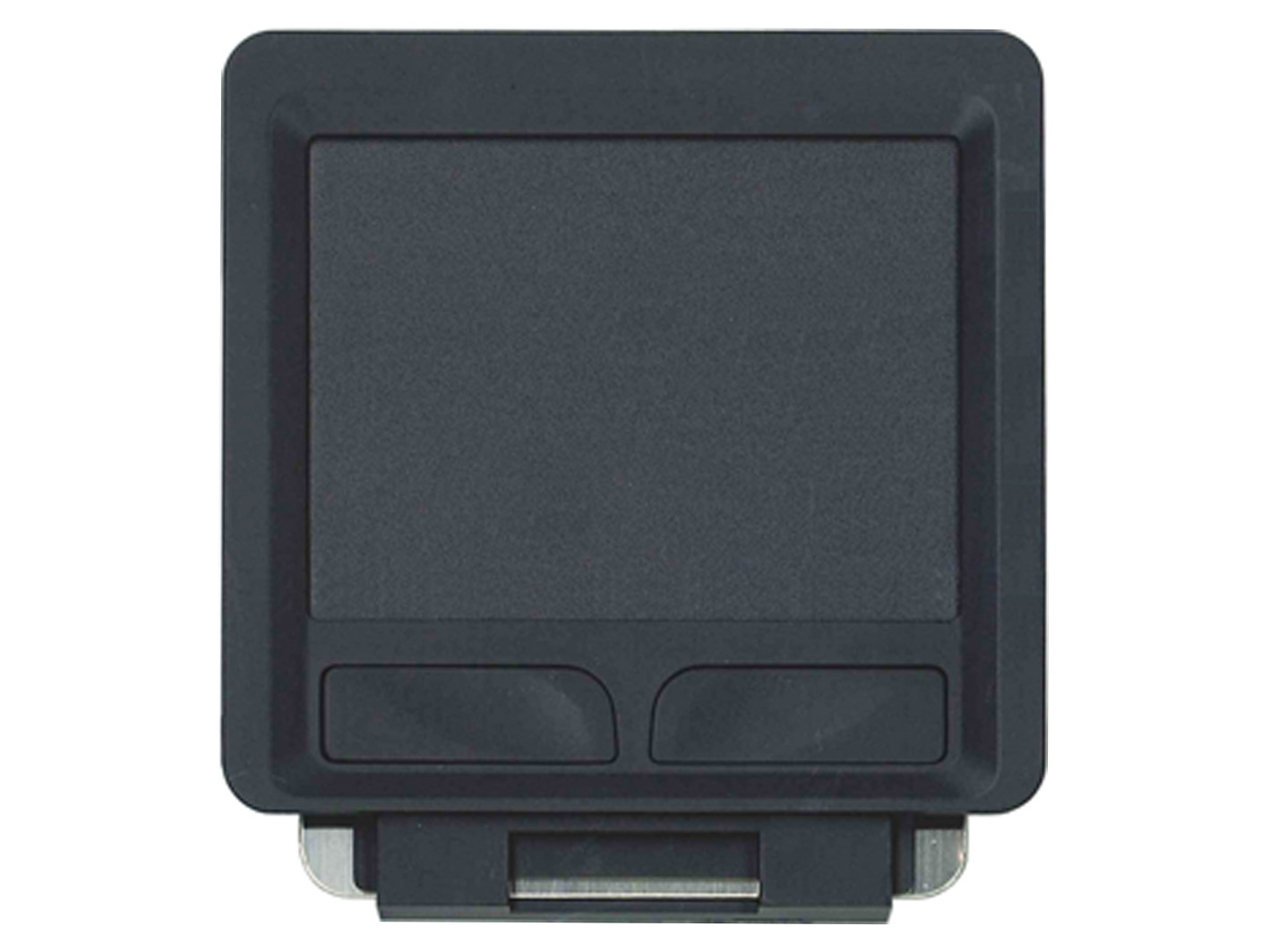

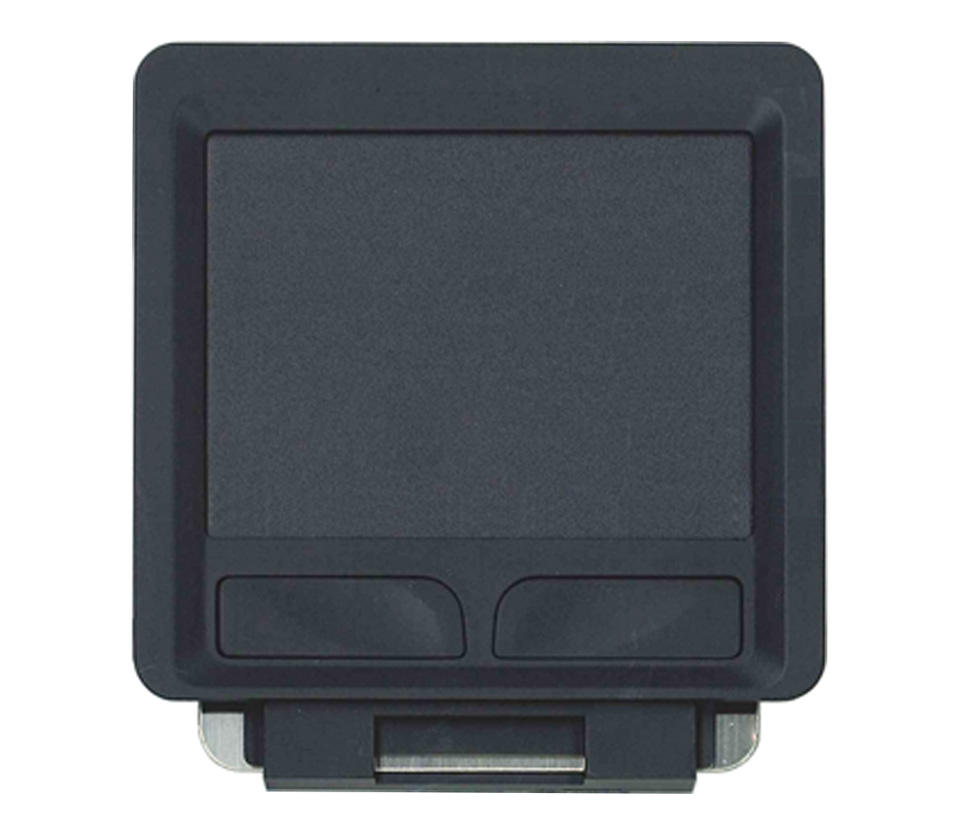

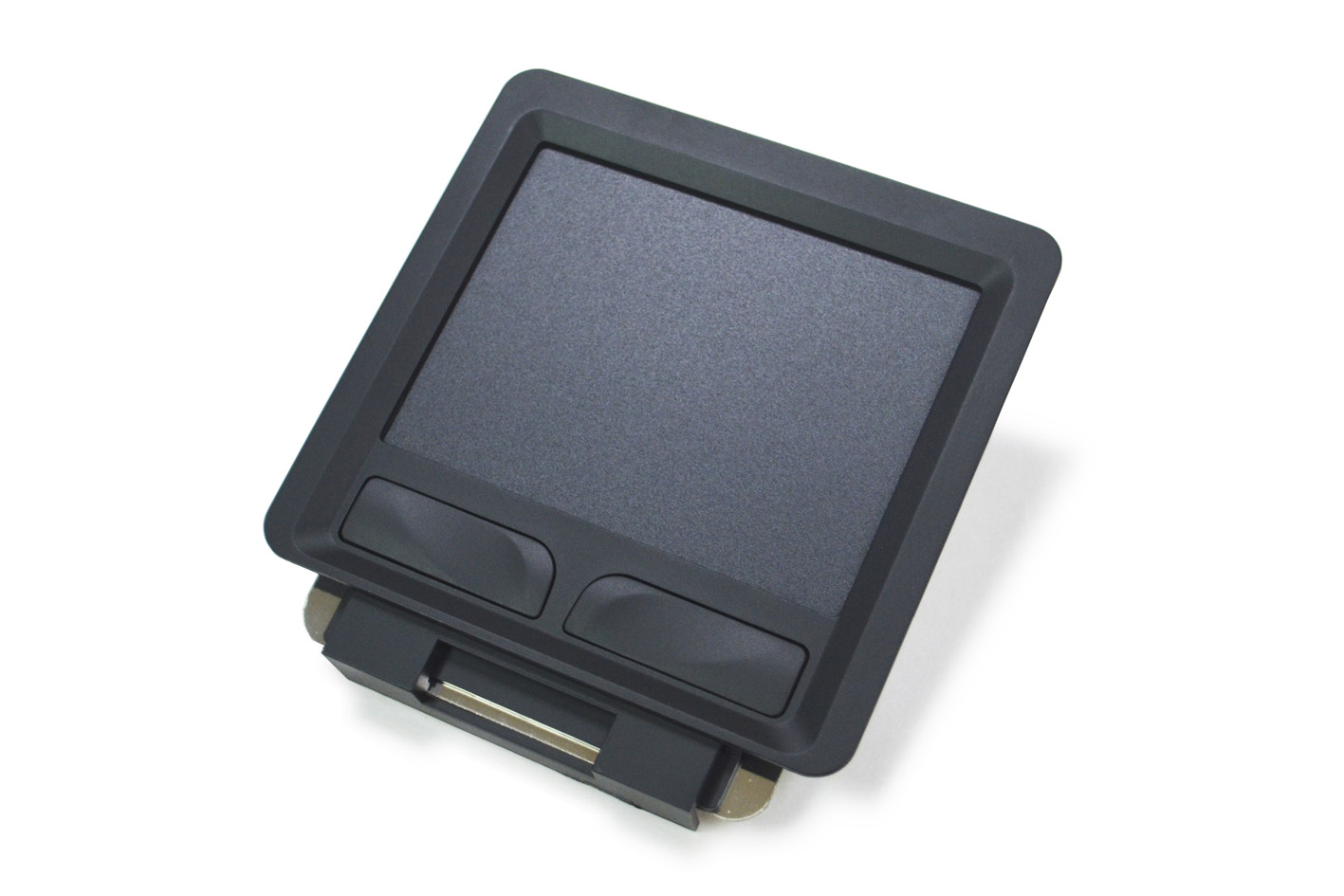

TPM-3000 Capacitive Touchpad Module
SKU:
UPC: 698545365632
The TPM-3000 is a high-precision capacitive touchpad module designed for seamless navigation. Equipped with left and right control buttons and an emulated scroll wheel, it provides an intuitive and responsive user experience. Users can effortlessly move the cursor by lightly gliding their finger across the surface. Built with a modular mechanical design, the TPM-3000 offers flexible configuration and easy maintenance, making it an ideal solution for KVM consoles, kiosks, and industrial applications.
Product Information
• Interface: PS/2; USB also available upon requested
• Resolution: 300 dpi
• Buttons / scroll wheel: Left and Right Button / support emulation of the scroll wheel
• Operating Voltage / Current: 5V +/- 0.3 / 3.4mA
• Input Power: 5 VDC, 100mA
• Voltage Fluctuation: <= 100mA)
• Voltage Rise Time: <= 1ms
• The Fastest Speed: 117 cm/s
• Displacement Magnification: 1.00 ~ 1.27

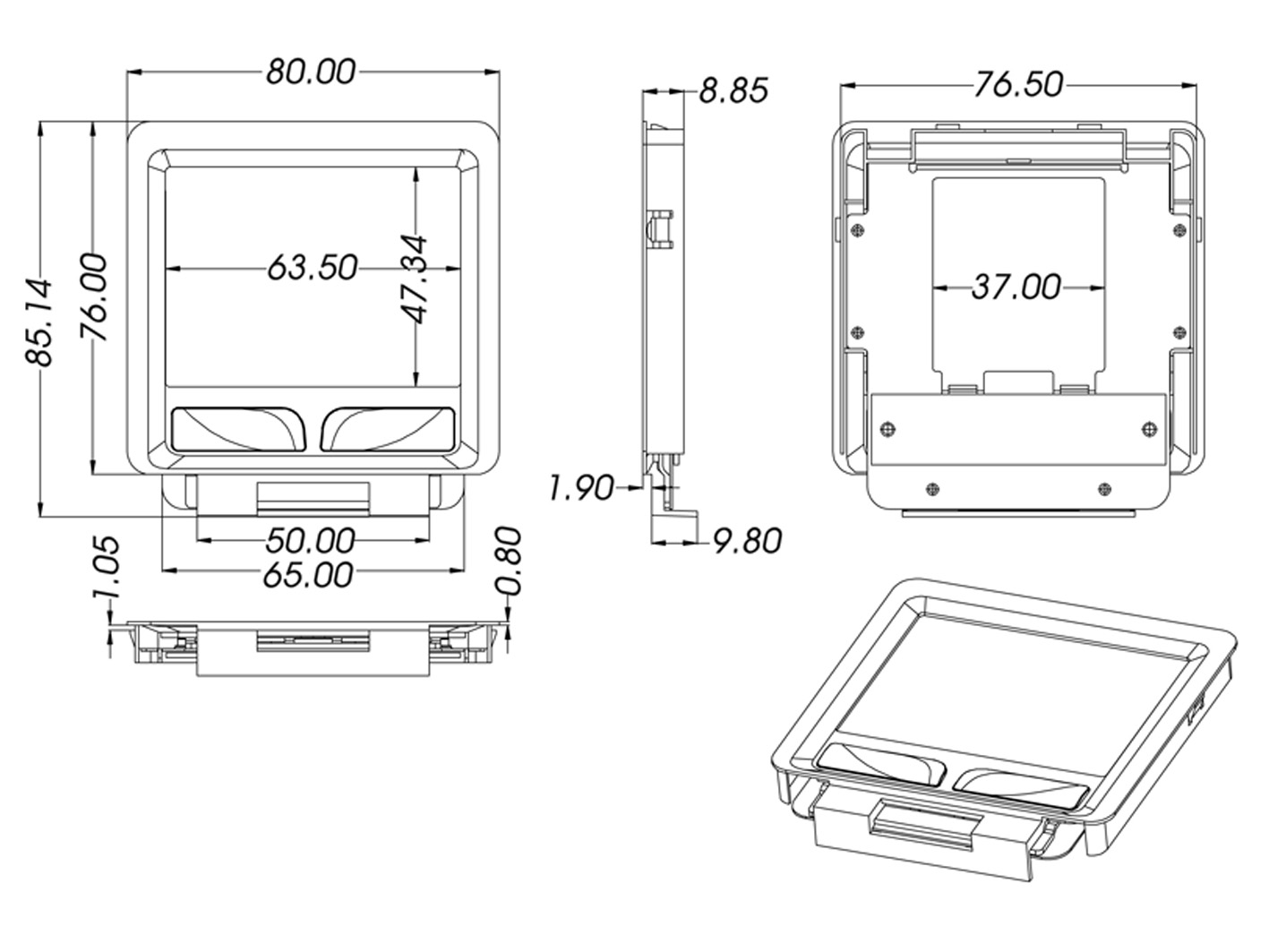

• Sensor Area: 65 +/- 0.2 (L) x 49 +/- 0.2 mm

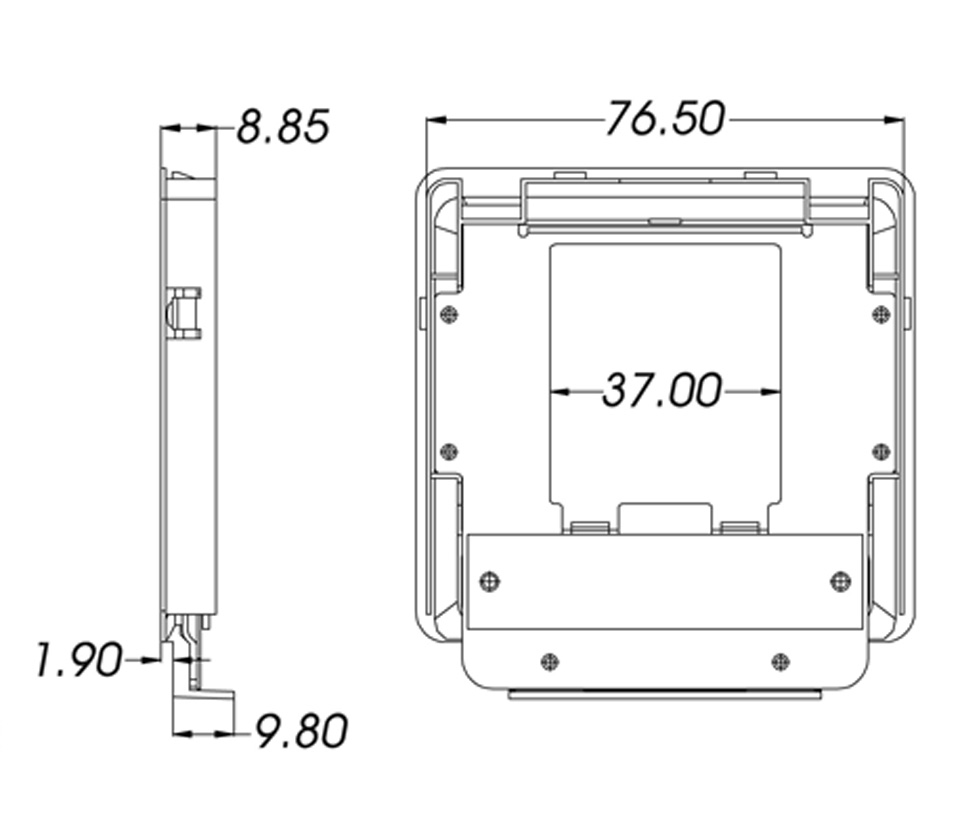

• Module Dimension: 391.30 (L) X 113.64 (W) x 6.9 (H) mm
• Weight: 50 +/- 2g (with metal plate & plastic frame)

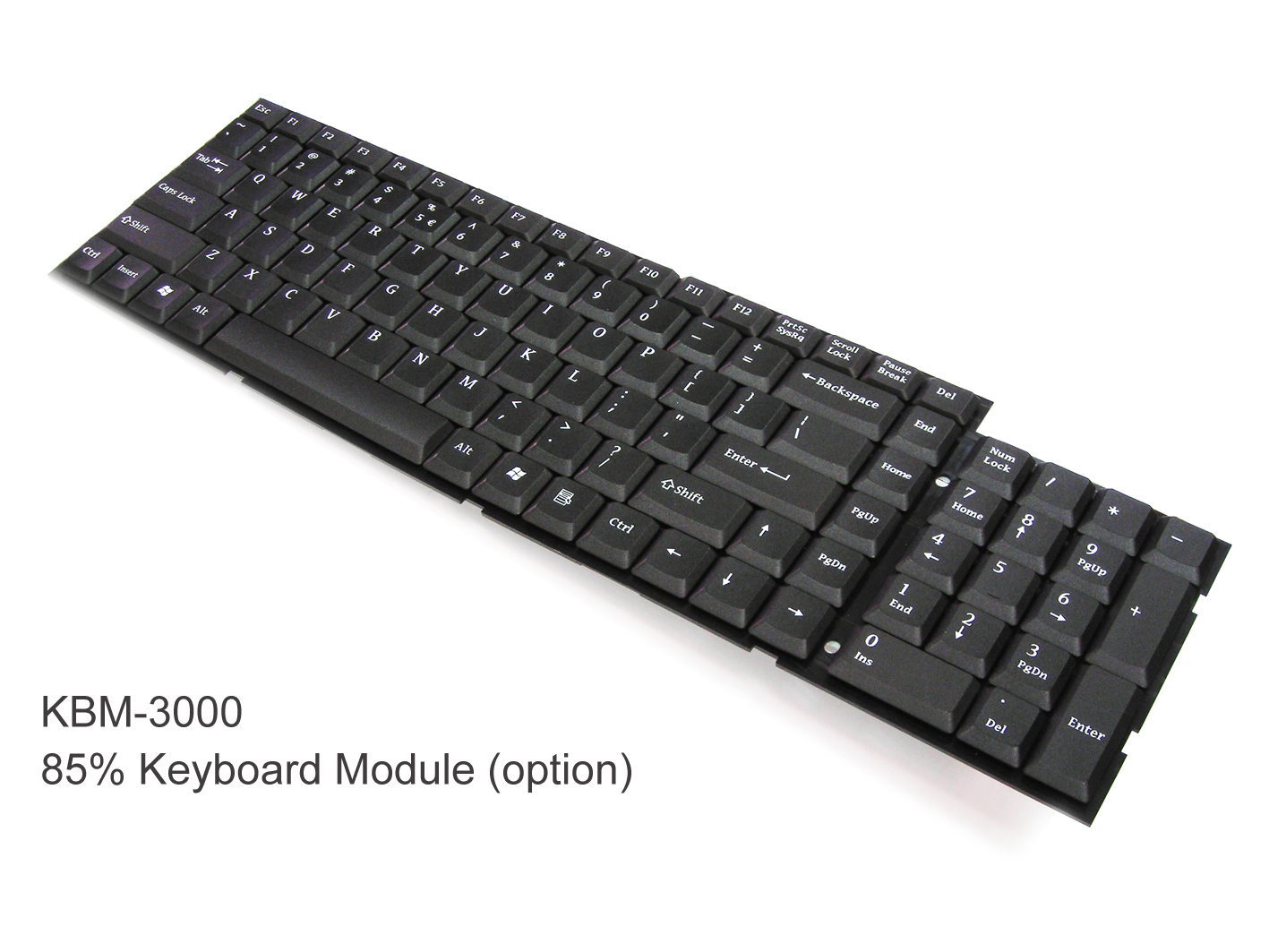

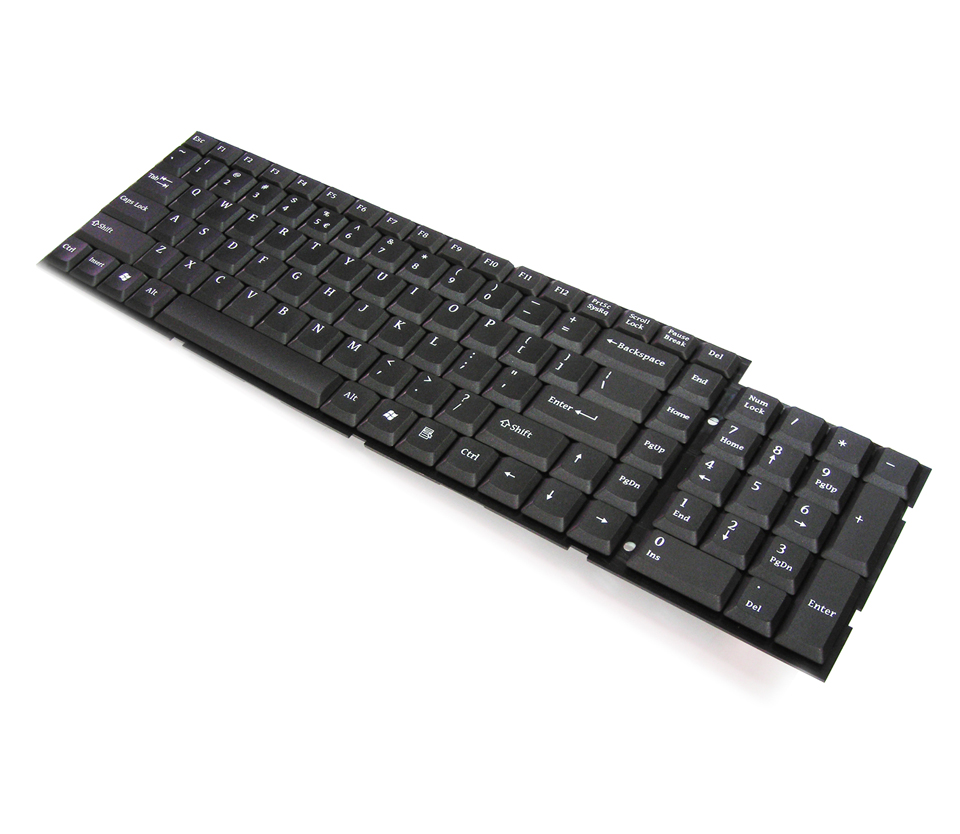

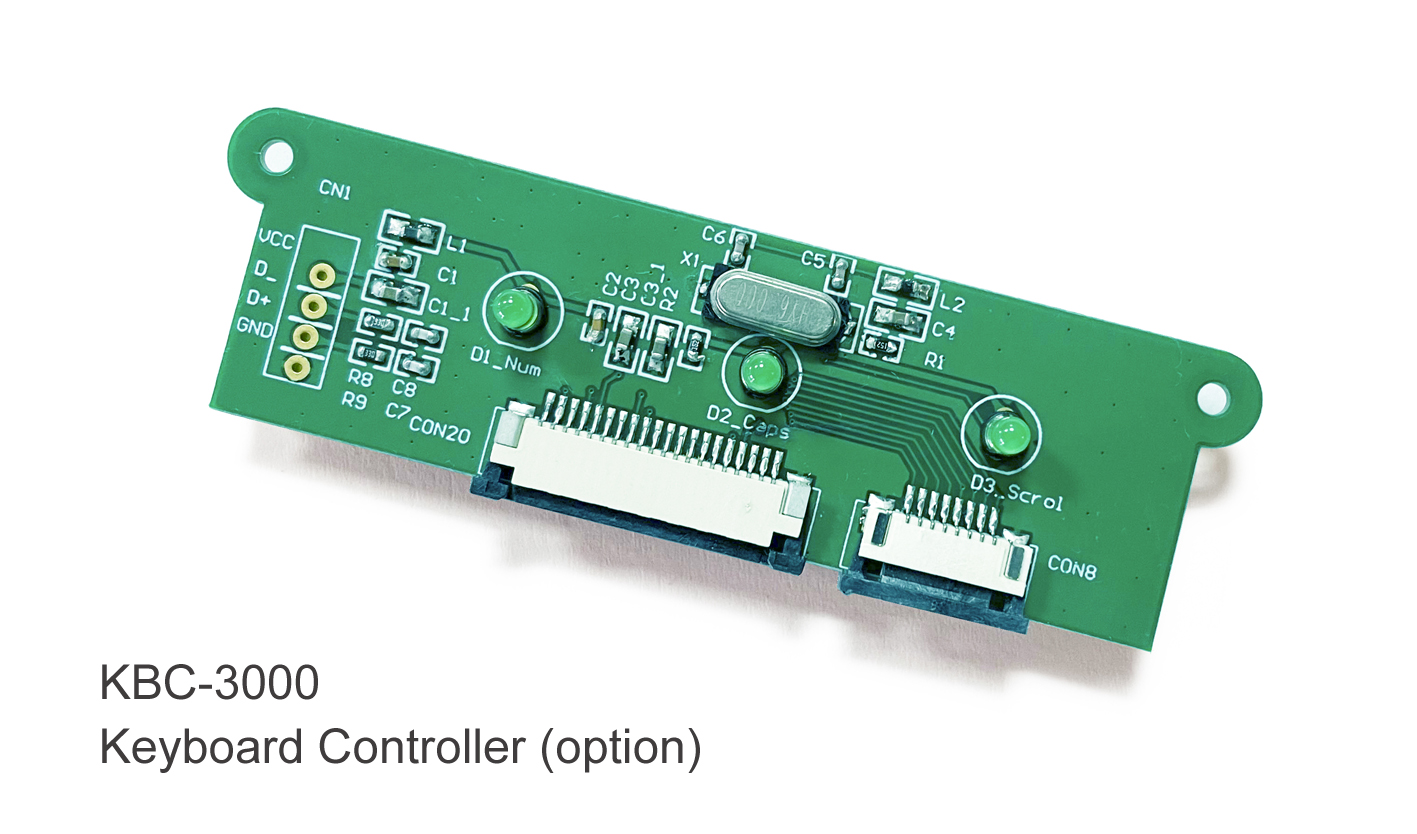

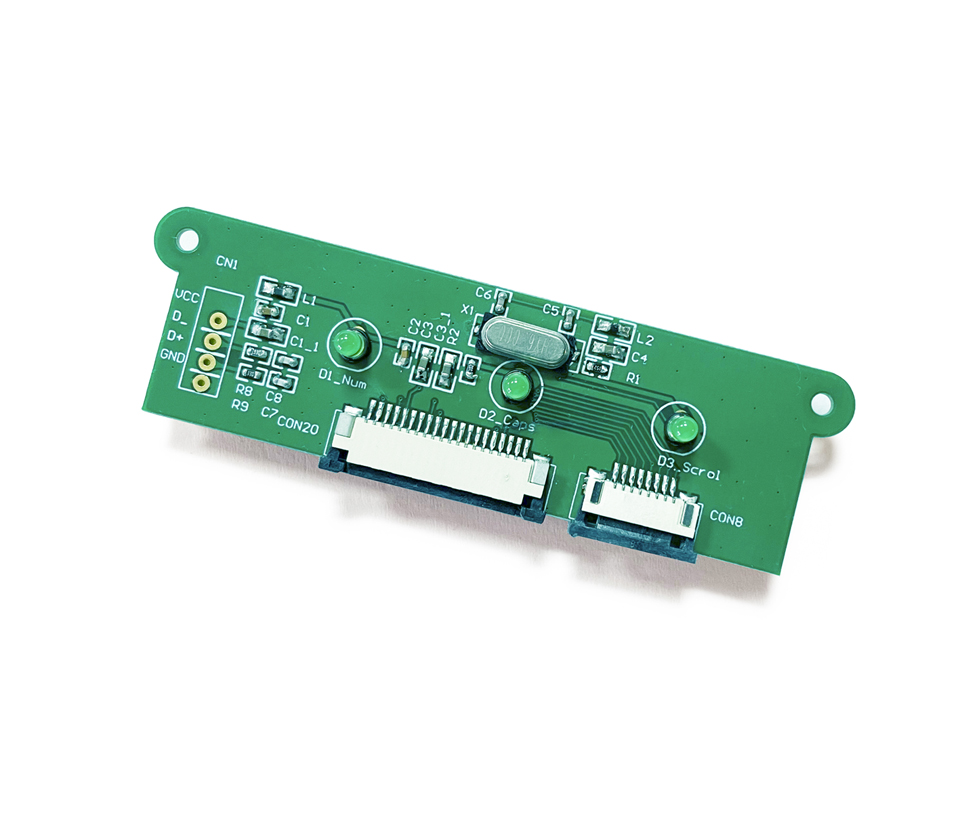

• Option: USB keyboard controller (PS/2 also available), USB Controller for USB TouchPad Module
