Bluetooth 4.0 USB Dongle Development/ Evaluation Kit, UDK-CC2540

  • Bluetooth 4.0 USB Dongle Development/ Evaluation Kit, UDK-CC2540
    UPC : 698545365953
    EAN : 0698545365953

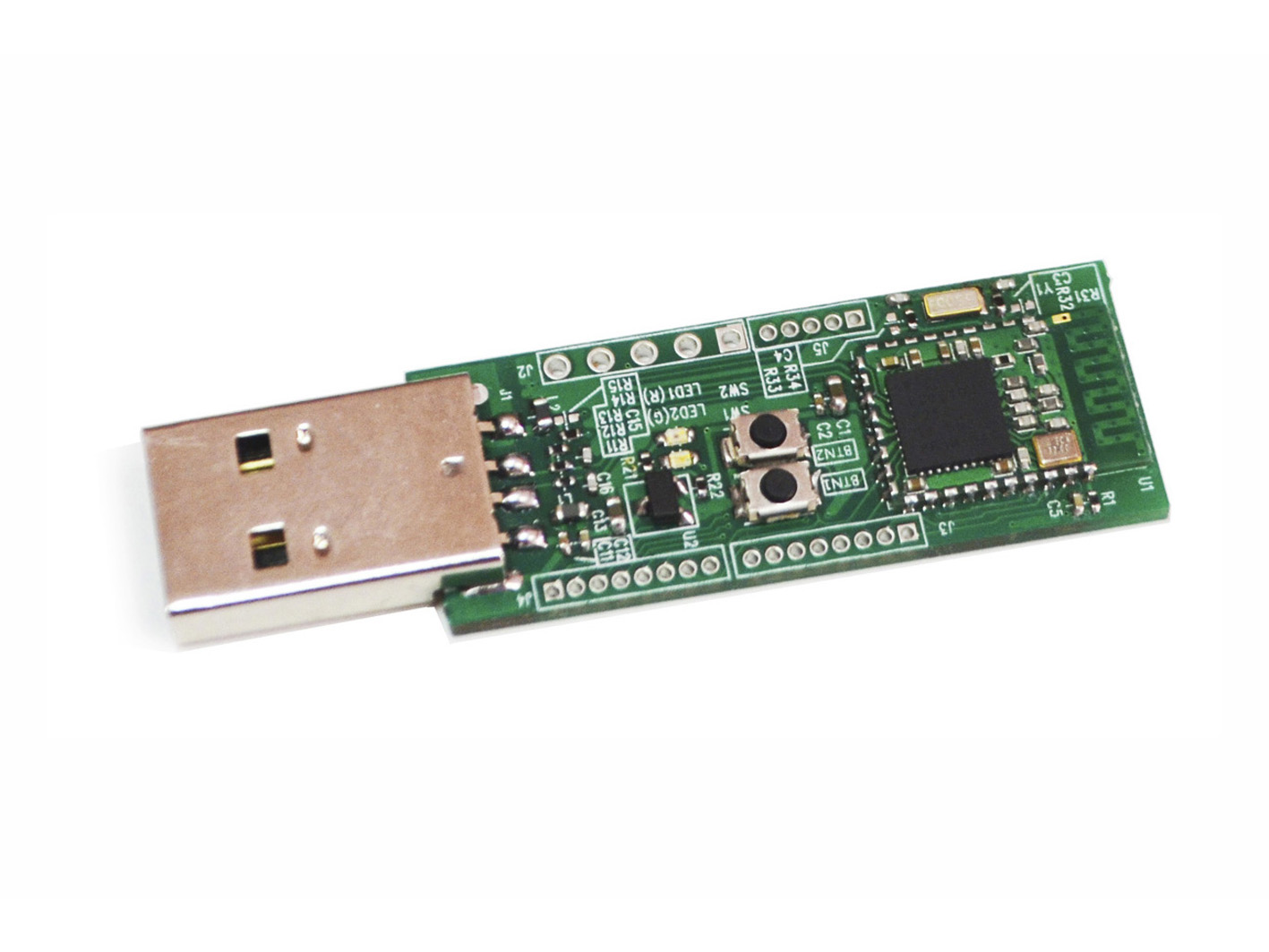

    UDK-CC2540, USB Dongle is a development kit for user to design Bluetooth Low Energy (BLE) application with integrated USB to the system with existing USB host. UDK-CC2540 USB Dongle contains a Bluetooth module BT02-2 using TI Bluetooth low energy controller CC2540. TI CC2540 is a world-leading chip in Bluetooth Low Energy 4.0 and offers variety of peripherals such as USB, UART, SPI and Timer. UDK-CC2540 USB Dongle also embeds a High-PSRR 300mA LDO, Buttons and LEDs, and General Purpose I/O Test Points. The Dongle can let user focus on their project development and verify the project easily and rapidly.

    Product Information

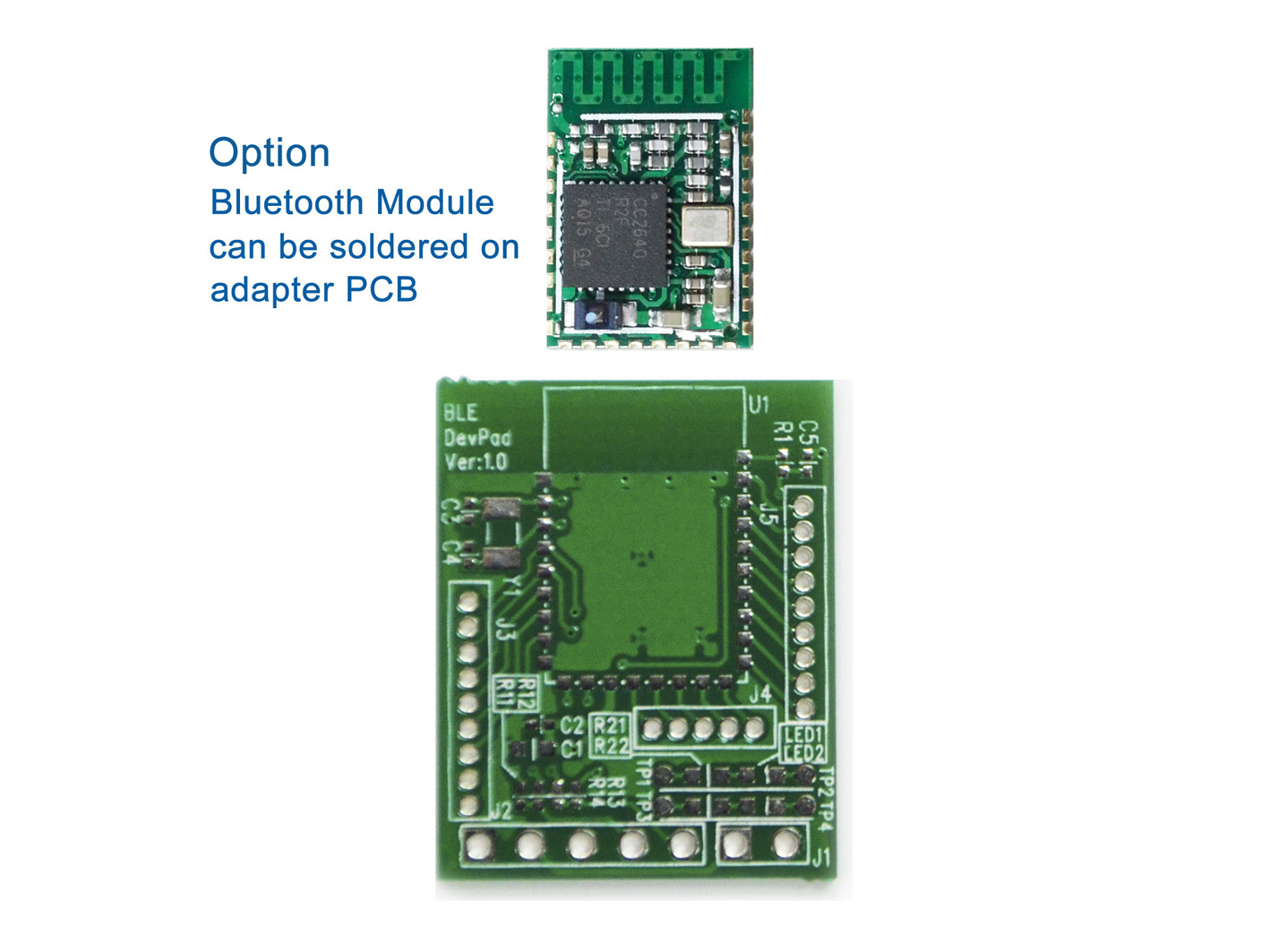

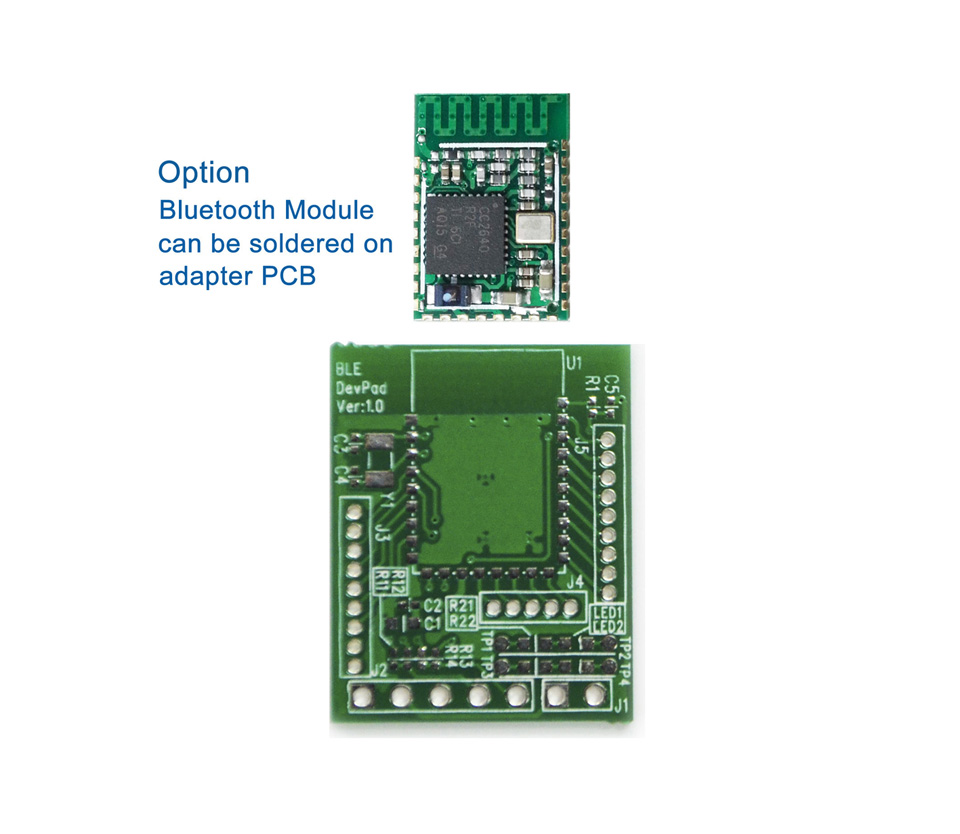

    BT02-2 Bluetooth Module with TI CC2540
    • Bluetooth version 4.0 low energy (LE, single mode) compliant
    • High-performance and low-power 8051 Microcontroller core with code prefetch
    • In-system-programmable flash, 256KB
    • 12-Bit ADC with eight channels and configurable resolution
    • 21 general purpose I/O
    • Full-Speed USB Interface
    • Power USARTs with support for several serial protocols
    • On board PCB Antenna and Crystal
    • Module dimension: 0.58 inch x 0.39 inch/ 14.8 x 10mm 14.8 x 10mm

    LDO
    • Fast Ultra High-PSRR, Low-Noise 300mA CMOS LDO
    • 3.3V Output Voltage

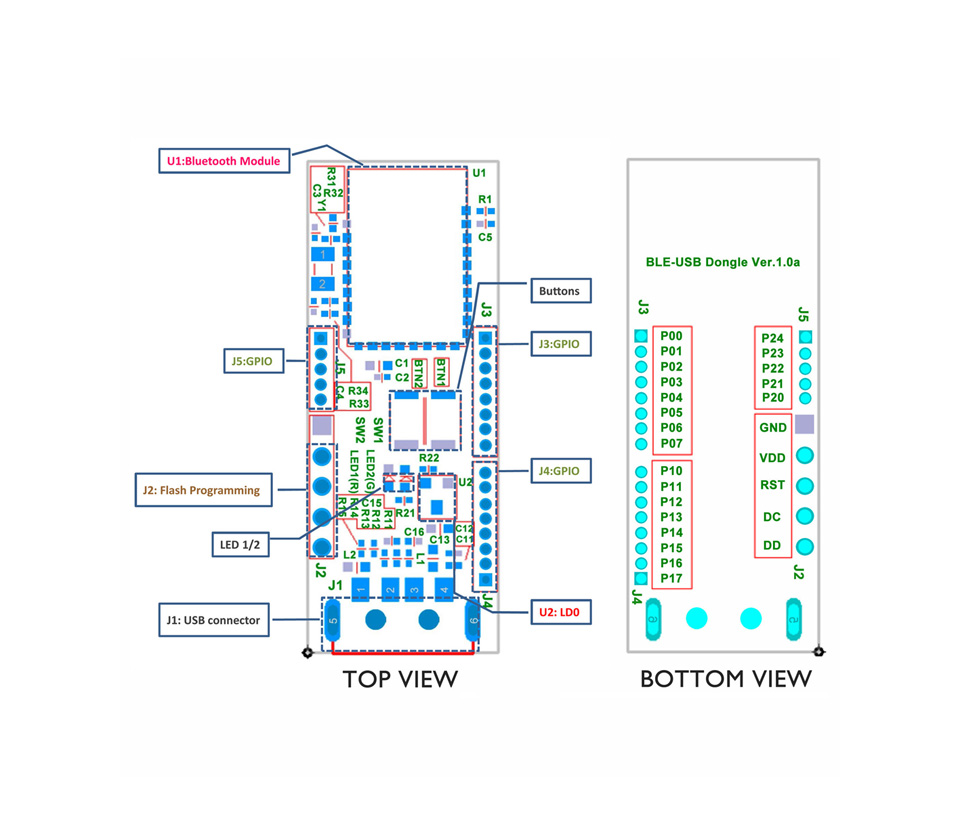

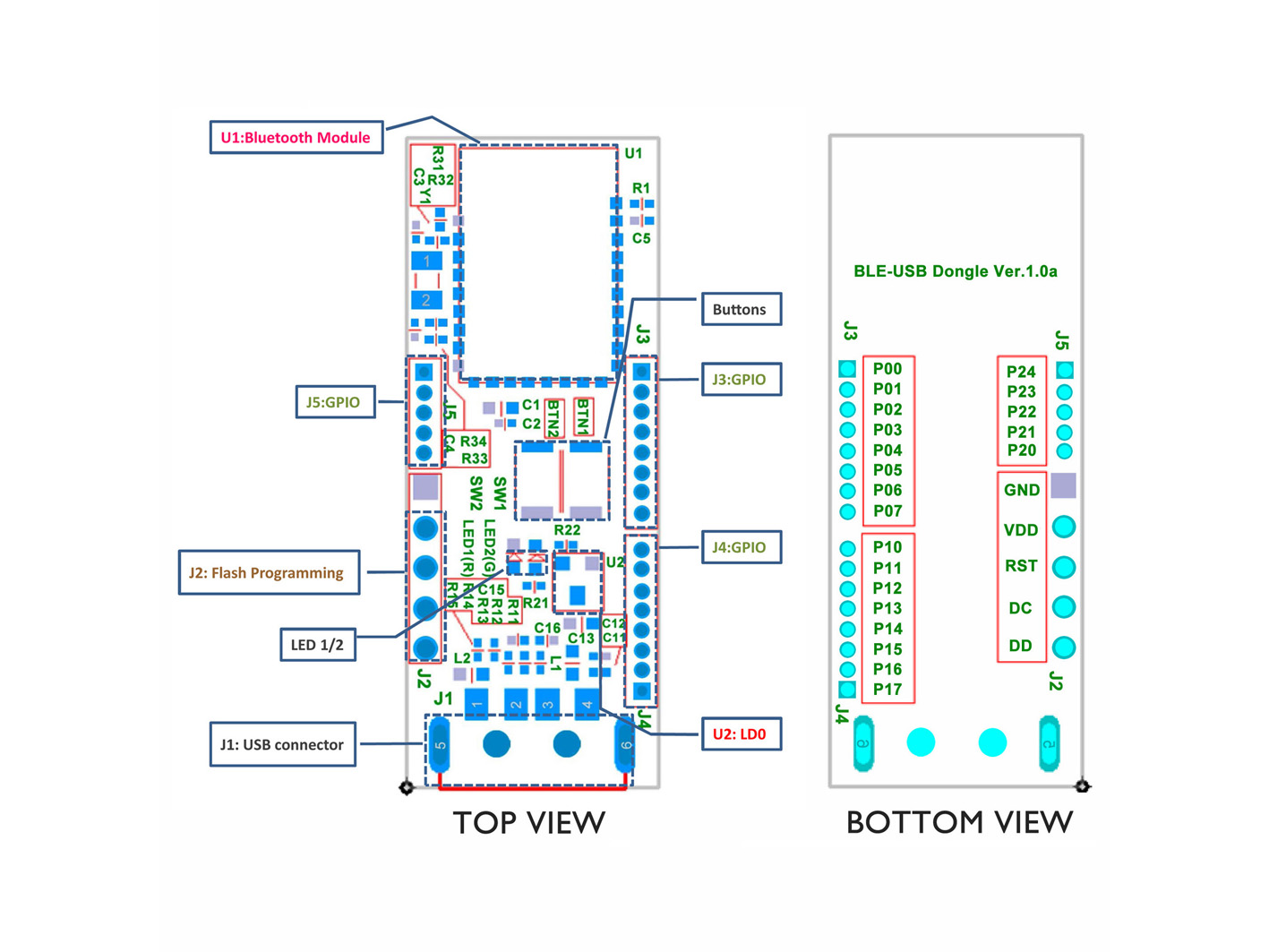

    Variety of Individual Pin Header Sections
    • Flash programming and debugging
    • General Purpose I/O (GPIO)

    Buttons and LEDs
    • Input / output function control

    USB Dongle Development Kit Dimension
    • 2.17 inch x 1.57 inch / 55 mm x 40 mm; 0.63 inch x 2.2 inch /16 mm x 56 mm (including USB Head)
